BA080M 无刷直流电机

  • 所属分类:[全部恒驱直流无刷电机]
  • 产品简介:特征:双转向,信号功能,锁定保护,无极调速,低噪音,低电磁干扰,超长寿命10000-50000小时
  • 订购热线:400-0755-631
  • 下载资料:资料下载







    BA080M

    Output Power 输出功率:500W-1000W

    Weight 重量: 1.75kg (Approx.)

    Brushless DC Motor-Typical Application (In development)

    无刷直流电机-典型应用 (研发中)



    Specialized for Hydrogen Fuel Cell Hydrogen Circulation Pump



    氢燃料电池氢气循环泵



    Model

    型号

    Voltage(V) 电压

    No Load 空载

    Rated Load 额定负载

    Stall 堵转

    Operating Range

    Rated

    Speed (rpm)

    Current (A)

    Torque (mNm)

    Speed (rpm)

    Current (A)

    Output P. (W)

    Torque (mNm)

    Current (A)

    BA080M-S01

    12-24

    24

    9225

    4.02

    836

    8071

    33.8

    706.6

    6685.5

    242.8

    Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 10000-50000hrs

    特征:双转向,信号功能,锁定保护,无极调速,低噪音,低电磁干扰,超长寿命10000-50000小时

    Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

    注意:上述规格仅针对特定客户,电压、扭矩、转速、电流、功率、输出轴的特征和尺寸等都可以按照客户的特殊要求进行调整。

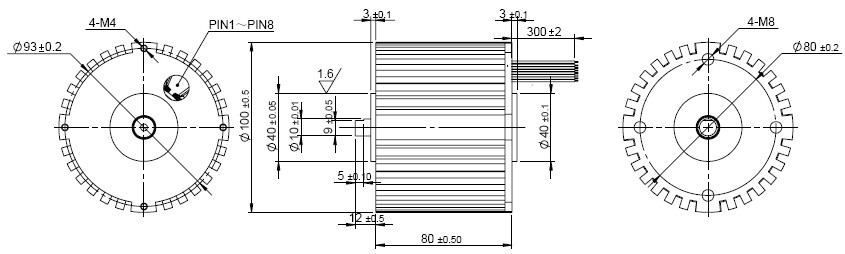

    Outline Drawing 外形图:



    Usable machine screw length 8.0mm max. from motor mounting surface



    Unit: Millimeter

    Performance Curve 性能曲线:

    BA080M-S01              DC24V
