B5933M 直流无刷电机

  • 所属分类:[全部恒驱直流无刷电机]
  • 产品简介:特征:双转向,信号功能,锁定保护,无级调速,低噪音,低电磁干扰,超长寿命10000-50000小时
  • 订购热线:400-0755-631
  • 下载资料:资料下载

    B5933M

    Output Power 输出功率:10W-100W

    Weight重量: 500g (Approx.)

    Brushless DC Motor-Typical Application无刷直流电机-典型应用

    With External Driving Controller 含外置驱动器

    Specialized For Automotive Parts: EGR Pump, Urea Pump

    专用于汽车部件:尾气循环泵,尿素泵



    Model

    型号

    Voltage(V) 电压

    No Load 空载

    Rated Load 额定负载

    Stall堵转

    Operating Range

    Rated

    Speed (rpm)

    Current (A)

    Torque (mNm)

    Speed (rpm)

    Current (A)

    Output P. (W)

    Torque (mNm)

    Current (A)

    B5933M-S01

    8-12

    12

    5045

    0.5

    60

    3822

    2.799

    24.016

    247.56

    9.98

    B5933M-S02

    8-24

    24

    9835

    0.9

    60

    8072

    3.02

    50.72

    334.8

    12.7

    Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 10000-50000hrs

    特征:双转向,信号功能,锁定保护,无级调速,低噪音,低电磁干扰,超长寿命10000-50000小时

    Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

    注意:上述规格仅针对特定客户,电压、扭矩、转速、电流、功率、输出轴的特征和尺寸等都可以按照客户的特殊要求进行调整。

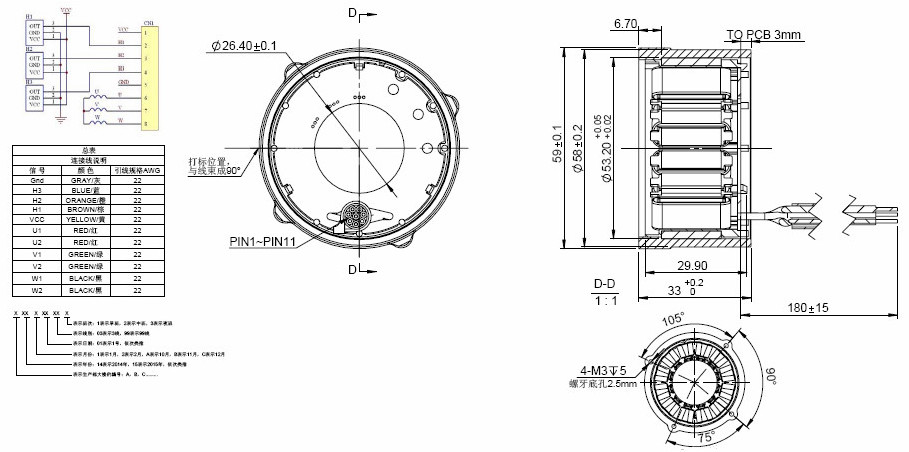

    Outline Drawing 外形图:

    Usable machine screw length 6.0mm max from motor mounting surface                             Unit: Millimeter

    Performance Curve 性能曲线:

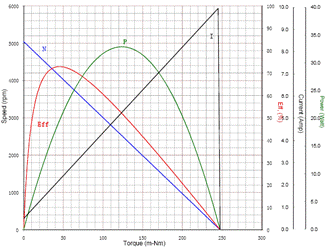

    B5933M-S01               12V

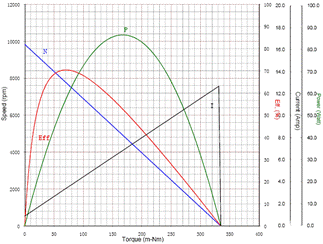

    B5933M-S02       24V
