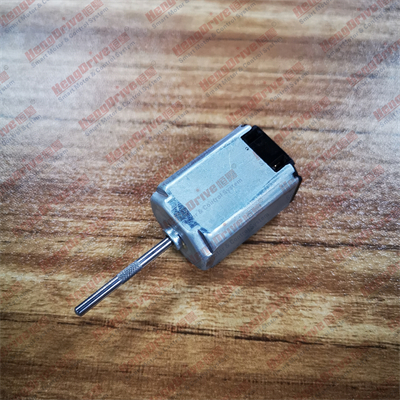

D2030M (DC Motor直流马达) |
Output Power 输出功率: |
Weight 重量: 50g (Approx.) |
|
DC Motor - Typical Application 直流电机 - 典型应用 Automotive Parts: Door lock, Motorcycle Lock. 汽车部件：汽车门锁，摩托车锁 |
|||
|
Model 型号 |
电压 Voltage(V) |
No Load 空载 |
Rated Load 额定负载 |
Stall 堵转 |
||||||
|
Operating Range |
Rated |
Speed (rpm) |
Current (A) |
Torque (mNm) |
Speed (rpm) |
Current (A) |
Output P. (W) |
Torque (mNm) |
Current (A) |
|
|
D2030M |
9~16 |
12 |
8827 |
0.18 |
15 |
6580 |
1.45 |
10.3 |
58.9 |
5.14 |
Characteristic: Low noise, Low Vibration, High Reliability
特征：低噪音，低震动，高可靠性
|
Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement. 注意：上述规格仅针对特定客户，电压、扭矩、转速、电流、功率、输出轴的特征和尺寸等都可以按照客户的特殊要求进行调整。 |

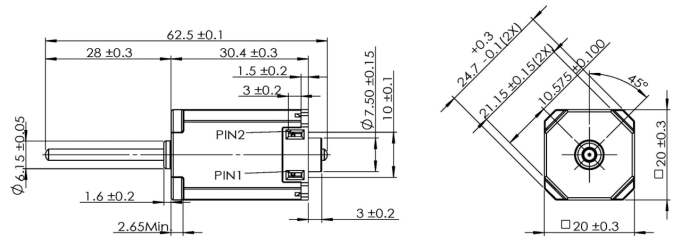

Outline Drawing 外形图:
Usable machine screw length 3.0mm max from motor mounting surface Unit: Millimeter

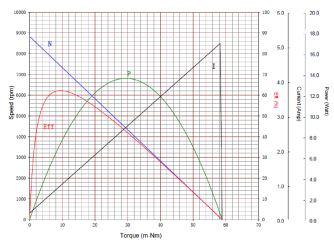

Performance Curve 性能曲线:
|
D2030M-S01 12V |
|
