B83A1M 无刷直流电机

  • 所属分类:[全部恒驱直流无刷电机]
  • 产品简介:特征:高效率,IP67,信号功能,锁定保护,过流保护,无级调速,低噪音,低电磁干扰,超长寿命30000小时
  • 订购热线:400-0755-631
  • 下载资料:资料下载

    B83A1M

    Output Power 输出功率: 50W~550W

    Weight 重量:1800 g (Approx.)

    Brushless DC Motor B83A1M-Typical Application无刷直流电机-典型应用

    Automotive Parts: Electronic Water Pump

    汽车部件:电子水泵



    Model

    型号

    Voltage(V) 电压

    No Load 空载

    Rated Load 额定负载

    Stall 堵转

    Operating Range

    Rated

    Speed (rpm)

    Current (A)

    Torque (mNm)

    Speed (rpm)

    Current (A)

    Output P. (W)

    Torque (mNm)

    Current (A)

    B83A1M-S01

    8-26

    24

    6629

    1.47

    230

    5708

    8.14

    137.5

    1655

    20

    B83A1M-S02

    8-26

    24

    6358

    1.23

    325

    5705

    10.37

    194.2

    3166

    30

    B83A1M-S03

    8-26

    24

    6412

    1.71

    457

    5691

    14.6

    272.3

    4046

    30

    B83A1M-S04

    18-32

    24

    7810

    2.98

    705

    6950

    26.67

    512.8

    3525

    50

    Characteristic: High efficiency, Above IP67, Signal function available, Locked rotor protection, High current protection, Stepless speed regulation, Low noise, Low EMI, Long life 30000hrs   特征:高效率,IP67,信号功能,锁定保护,过流保护,无级调速,低噪音,低电磁干扰,超长寿命30000小时

    Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

    注意:上述规格仅针对特定客户,电压、扭矩、转速、电流、功率、输出轴的特征和尺寸等都可以按照客户的特殊要求进行调整。

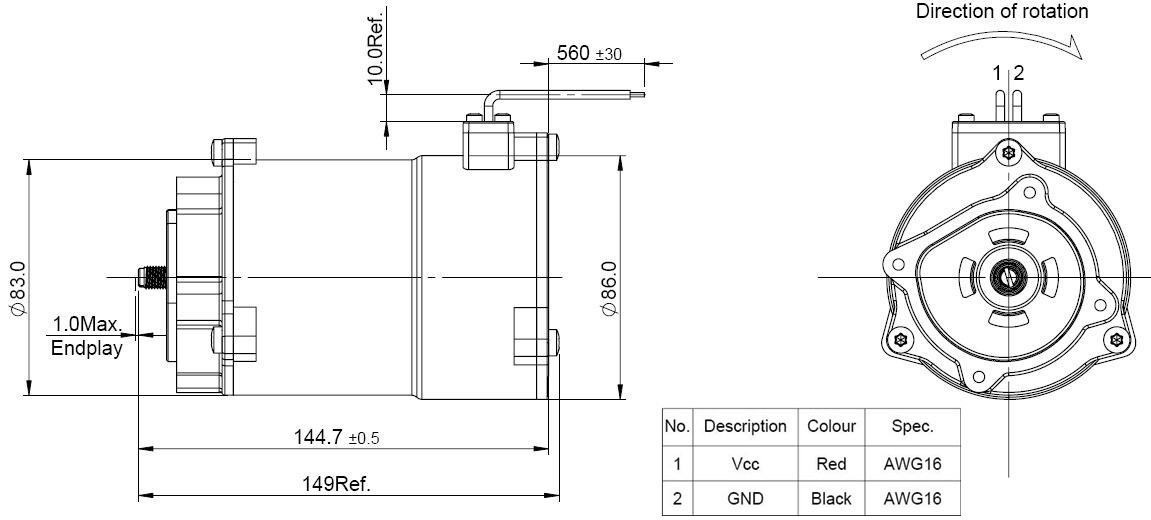

    Outline Drawing 外形图:





    Unit: Millimeter

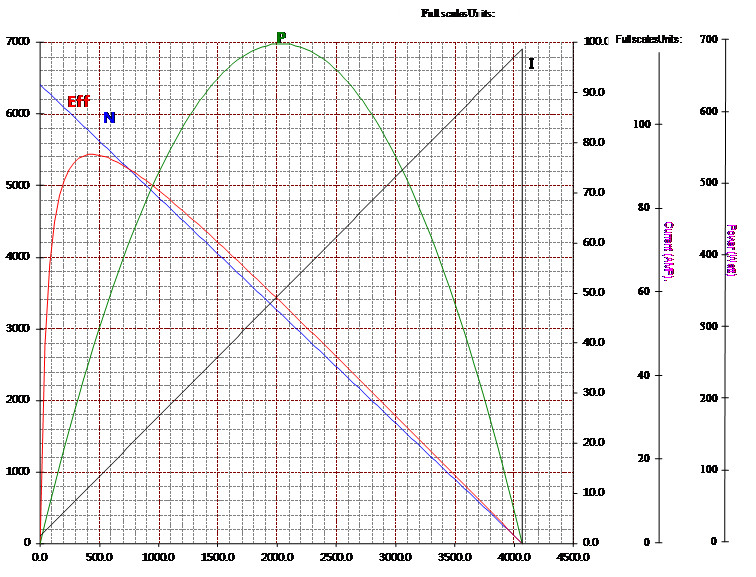

    Performance Curve 性能曲线:

    B83A1M-S01               24V

    B83A1M-S03              24V
