B7083P 无刷直流电机泵

  • 所属分类:[全部恒驱直流无刷电机]
  • 产品简介:特征:高效率,IP67,信号功能,锁定保护,过流保护,无级调速,低噪音,低电磁干扰,超长寿命30000小时
  • 订购热线:400-0755-631
  • 下载资料:资料下载

    B7083P

    Output Power 输出功率: 20W~150W

    Weight 重量:1300g (Approx.)

    Brushless DC Motor Pump-Typical Application (In development)

    无刷直流电机泵-典型应用(研发中

    Automotive Parts: Electronic Water Pump

    汽车部件:电子水泵



    Model

    型号

    Voltage(V) 电压

    No Load 空载

    Rated Load 额定负载

    Stall 堵转

    Operating Range

    Rated

    Speed (rpm)

    Current (A)

    Torque (mNm)

    Speed (rpm)

    Current (A)

    Output P. (W)

    Torque (mNm)

    Current (A)

    B7083P-S01

    8-26

    12

    7807

    0.96

    100

    6776

    8.37

    70.96

    756.9

    20

    B7083P-S02

    8-26

    24

    7816

    0.46

    100

    6768

    4.17

    70.88

    745.7

    28

    Characteristic: High efficiency, Above IP67, Signal function available, Locked rotor protection, High current protection, Stepless speed regulation, Low noise, Low EMI, Long life 30000hrs   特征:高效率,IP67信号功能,锁定保护,过流保护,无级调速,低噪音,低电磁干扰,超长寿命30000小时

    Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

    注意:上述规格仅针对特定客户,电压、扭矩、转速、电流、功率、输出轴的特征和尺寸等都可以按照客户的特殊要求进行调整。

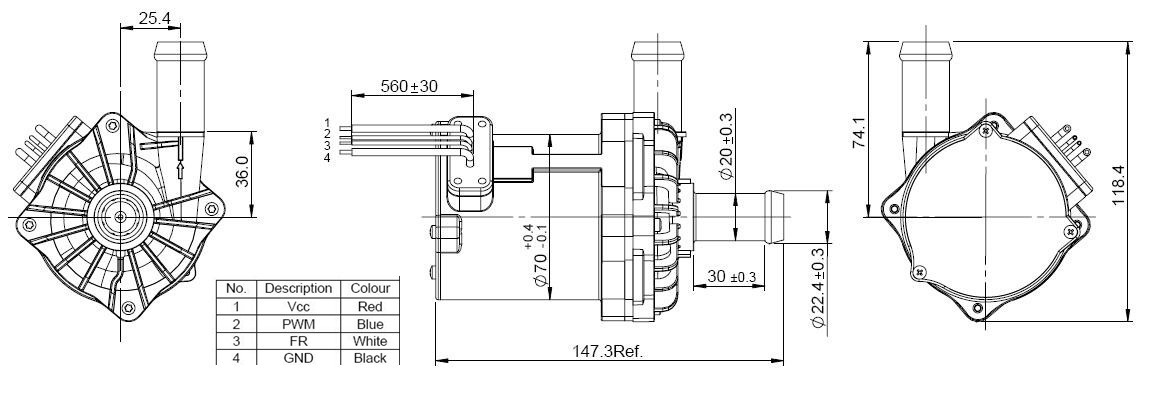

    Outline Drawing 外形图:



                                                                                       Unit: Millimeter

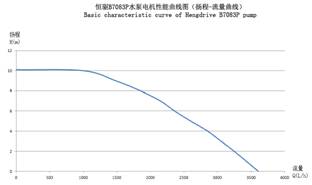

    Performance Curve 性能曲线:                     HQ Curve 扬尘-流量曲线:

    B7083P-S01                  12V
