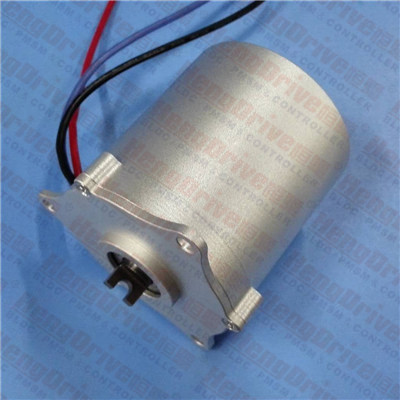

B6875M 直流无刷电机

  • 所属分类:[全部恒驱直流无刷电机]
  • 产品简介:特征:U、V、W三根相线,低噪音,低电磁干扰,超长寿命3000-30000小时
  • 订购热线:400-0755-631
  • 下载资料:资料下载

    B6875M

    Output Power 输出功率: 50W-200W

    Weight 重量: 1000g(Approx.)

    Brushless DC Motor-Typical Application In development

    直流无刷电机-典型应用(研发中

    Automotive Parts: ABS Piston Pump, Oil Pump, Fuel Pump

    汽车部件:ABS 活塞泵,机油泵,燃油泵

    Medical Apparatus :Specialized for Oxygenator Pump   医疗器械:专用于制氧机泵

    Home Application: Air Pump, Water Pump    家用电器:气泵,水泵



    Model

    型号

    电压 Voltage(V)

    No Load 空载

    Rated Load 额定负载

    Stall 堵转

    Operating Range

    Rated

    Speed (rpm)

    Current (A)

    Torque (mNm)

    Speed (rpm)

    Current (A)

    Output P. (W)

    Torque (mNm)

    Current (A)

    B6875M-S01

    8-26

    12

    2500

    1.2

    800

    2061

    17.24

    172.6

    4554

    92

    B6875M-S02

    8-26

    24

    2500

    0.6

    800

    2061

    8.62

    172.6

    4555

    46

    Characteristic:  U, V, W wires, Low noise, Low EMI, Long life 3000-30000hrs   特征:UVW三根相线,低噪音,低电磁干扰,超长寿命3000-30000小时

    Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

    注意:上述规格仅针对特定客户,电压、扭矩、转速、电流、功率、输出轴的特征和尺寸等都可以按照客户的特殊要求进行调整。

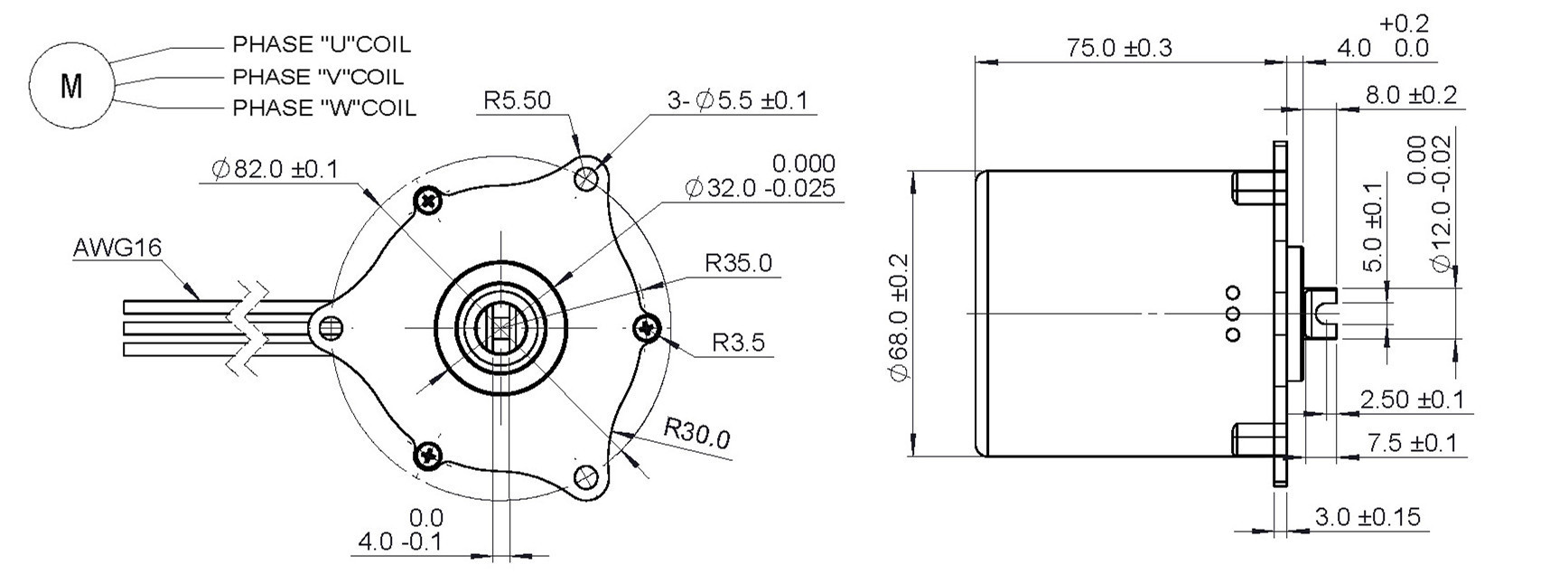

    Outline Drawing 外形图:



    Usable machine screw length 1.5mm max. from motor mounting surface

    Unit: Millimeter

    Performance Curve 性能曲线:

    B6875M-S01                12V

    B6875M-S02           24V
