富士康科技集团控股子公司
专业研发、生产无刷电机和永磁同步电机及其驱动器

B3659M 直流无刷电机

  • 所属分类:[全部恒驱直流无刷电机]
  • 产品简介:特征:双转向,信号功能,锁定保护,无级调速,低噪音,低电磁干扰,超长寿命10000-50000小时
  • 订购热线:400-0755-631
  • 下载资料:资料下载

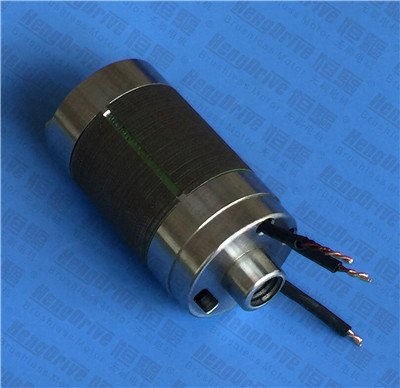

    B3659M

    Output Power 输出功率: 1W~250W

    Weight 重量: 250g (Approx.)

    Brushless DC Motor-Typical Application 直流无刷电机-典型应用

    Medical Equipment: Bone drill, Bone Saw

    医疗器械:骨钻,骨锯

    Industry equipment: Cordless drill, Hot air heating gun

    工商设备:充电钻,热风枪



    Model

    型号

    电压 Voltage(V)

    No Load 空载

    Rated Load 额定负载

    Stall 堵转

    Operating Range

    Rated

    Speed (rpm)

    Current (A)

    Torque (mNm)

    Speed (rpm)

    Current (A)

    Output P. (W)

    Torque (mNm)

    Current (A)

    B3659M-S01

    5-26

    9.9

    16900

    2.2

    100

    12280

    22.9

    128.9

    200

    40

    B3659M-S02

    5-26

    9.9

    21000

    3.0

    100

    16900

    28.5

    175

    150

    40

    Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 10000-50000hrs

    特征:双转向,信号功能,锁定保护,无级调速,低噪音,低电磁干扰,超长寿命10000-50000小时

    Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

    注意:上述规格仅针对特定客户,电压、扭矩、转速、电流、功率、输出轴的特征和尺寸等都可以按照客户的特殊要求进行调整。

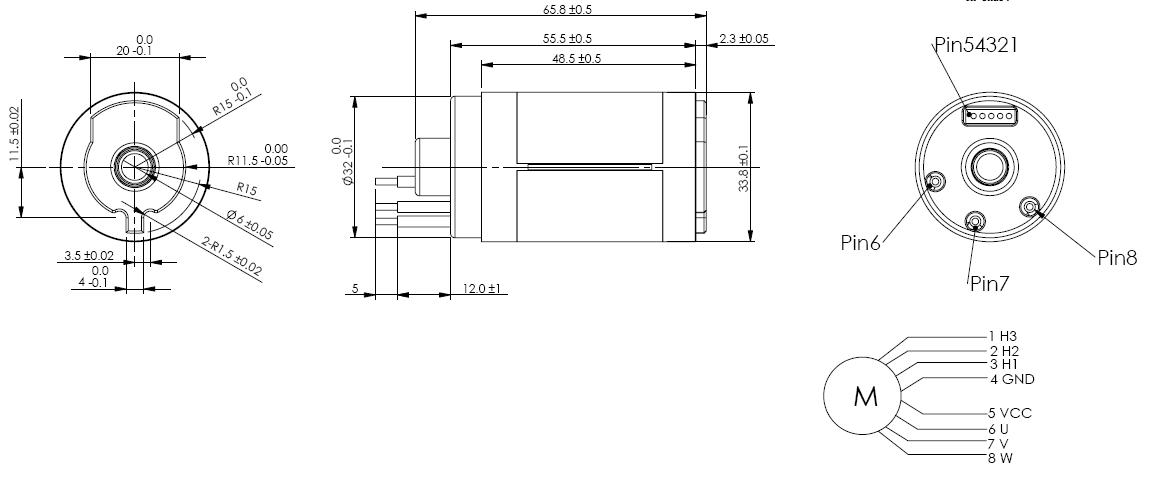

    Outline Drawing 外形图:        Unit: Millimeter

    Performance Curve 性能曲线:

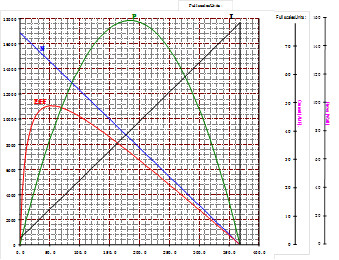

      B3659M-S01         9.9V

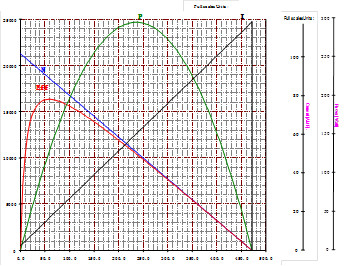

    B3659M-S02         9.9V
