B96A1M无刷直流电机

  • 所属分类:[全部恒驱直流无刷电机]
  • 产品简介:特征:高效率,双转向,信号功能,锁定保护,无级调速,低电磁干扰,超长寿命10000-30000小时
  • 订购热线:400-0755-631
  • 下载资料:资料下载



    B96A1M

    Output Power 输出功率: 1000W~4500W

    Weight 重量: 5.7Kg (Approx.)

    Brushless DC Motor-Typical Application 直流无刷电机-典型应用

    Underwater Propeller, UAV Propeller, Motorboat Propeller, Small Surface Vessel Propeller

    水下推进器,无人机推进器,摩托艇推进器,小型水面船舶推进器

    Automotive Parts汽车部件

    Industry Facility Power Plant工业设备动力装置

    Medical Equipment Power Plant医疗设备动力装置

    Power Tool Application电动工具应用



    Model

    型号

    Voltage(V) 电压

    No Load 空载

    Rated Load 额定负载

    Stall 堵转

    Operating Range

    Rated

    Speed (rpm)

    Current (A)

    Torque (Nm)

    Speed (rpm)

    Current (A)

    Output P. (W)

    Torque (Nm)

    Current (A)

    B96A1M-S01

    42-54

    48

    3607

    9.40

    8.0

    2713

    58.3

    2275

    32

    85

    B96A1M-S02

    42-54

    48

    7575

    9.18

    4.9

    5949

    84.8

    3055

    23

    85

    B96A1M-S03

    42-54

    48

    5171

    7.00

    11

    3310

    115

    4080

    46

    150

    Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 10000-50000hrs

    特征:双转向,信号功能,锁定保护,无极调速,低噪音,低电磁干扰,超长寿命10000-50000小时

    Notice: Data in this typical specification sheet are for other certain customer, the specific BLDC motor performance and dimension can be changed by adjusting winding, magnetic field, controller parameter and relevant mechanical factor to meet different customer requirement.

    注意:上述规格仅针对特定客户,对于您的特殊要求,可以通过调整绕组、磁场、控制参数和相关机械参数来达到您的不同要求。

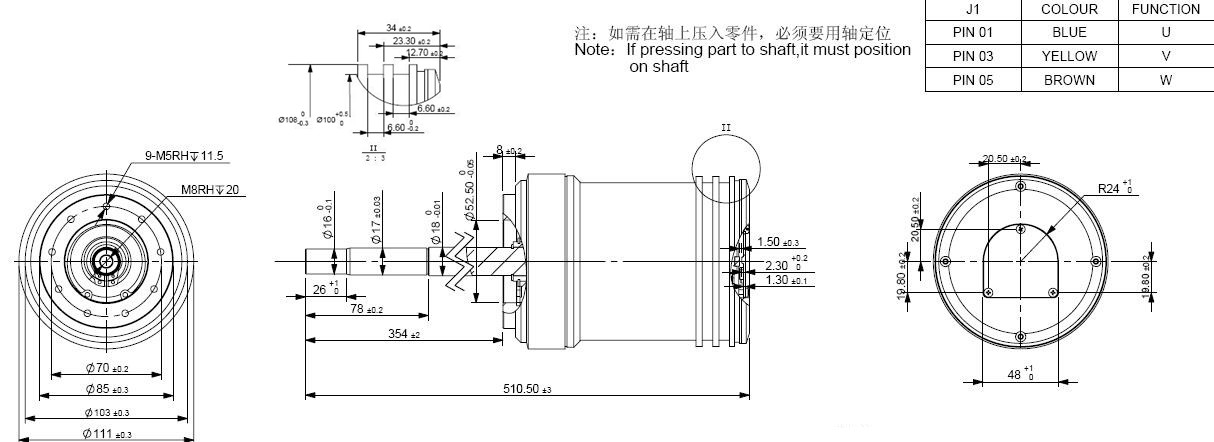

    Outline Drawing 外形图:

    Usable machine screw length 8.0mm max. from motor mounting surface

    Unit: Millimeter

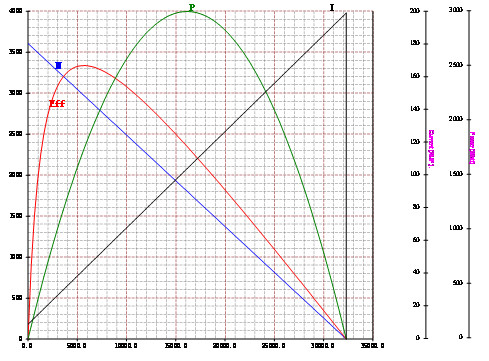

    Performance Curve 性能曲线:

    B96A1M-S01                  48V

    B96A1M-S02              48V
