富士康科技集团控股子公司

专业研发、生产无刷电机和永磁同步电机及其驱动器

D2953M

Output Power 输出功率: 10W~60W

Weight 重量: 160g (Approx.)

DC Motor - Typical Application 直流电机 - 典型应用

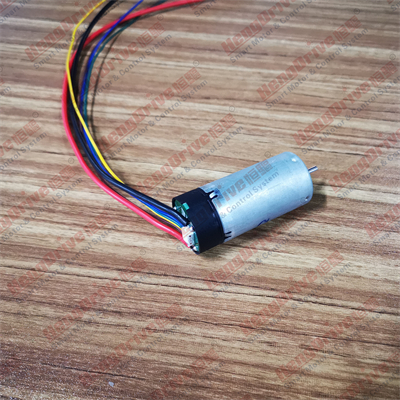

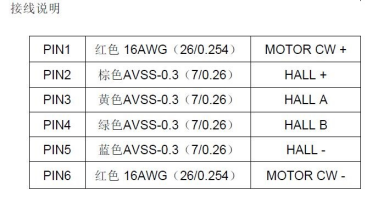

With Hall PCBA

含霍尔接线板

Automotive Parts: Tailgate Lear Actuator.

汽车部件：尾门撑杆

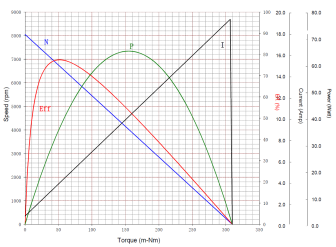

Model

型号

(DC Motor直流马达)

Voltage(V) 电压

No Load 空载

Rated Load 额定负载

Stall 堵转

Operating Range

Rated

Speed (rpm)

Current (A)

Torque (mNm)

Speed (rpm)

Current (A)

Output P. (W)

Torque (mNm)

Current (A)

D2953M-S01

9~16

12

8050

0.78

50

6750

3.8

35

309

19

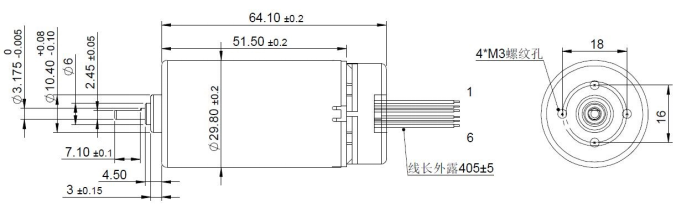

Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

注意：上述规格仅针对特定客户，电压、扭矩、转速、电流、功率、输出轴的特征和尺寸等都可以按照客户的特殊要求进行调整。
