BC080S外转子无刷电机

  • 所属分类:[全部恒驱直流无刷电机]
  • 产品简介:特征:高效率,双转向,信号功能,锁定保护,无级调速,低电磁干扰,超长寿命10000-30000小时。
  • 订购热线:400-0755-631
  • 下载资料:资料下载

    BC080S

    Outer Rotor

    Output Power 输出功率:100W~3000W

    Weight 重量: (Approx.) 15kg

    外转子

    Brushless DC Motor-Typical Application 直流无刷电机-典型应用

    Marine propeller水面船舶推进器

    Underwater vehicle propeller水下航行器推进器

    DD Motor for Wash Machine洗衣机直驱电机

    Ultra-low Speed & High Torque Running Equipment 超低速大力矩运行设备



    Model

    型号

    电压 Voltage(V)

    No Load 空载

    Rated Load 额定负载

    Stall 堵转

    Operating Range

    Rated

    Speed (rpm)

    Current (A)

    Torque (Nm)

    Speed (rpm)

    Current (A)

    Output P. (W)

    Torque (Nm)

    Current (A)

    BC080S-S01

    AC180-260

    AC220V

    89

    0.09

    19

    60

    0.79

    120

    59

    2.5

    BC080S-S02

    AC180-260

    AC220V

    302

    0.27

    23

    184

    3.07

    442

    58

    2.5

    BC080S-S03

    AC180-260

    AC220V

    669

    0.64

    19

    507

    6.21

    1041

    80

    8.0

    Characteristic: High Efficiency, CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low EMI, Long life 10000-30000hrs   特征:高效率,双转向,信号功能,锁定保护,无级调速,低电磁干扰,超长寿命10000-30000小时

    Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

    注意:上述规格仅针对特定客户,电压、扭矩、转速、电流、功率、输出轴的特征和尺寸等都可以按照客户的特殊要求进行调整。

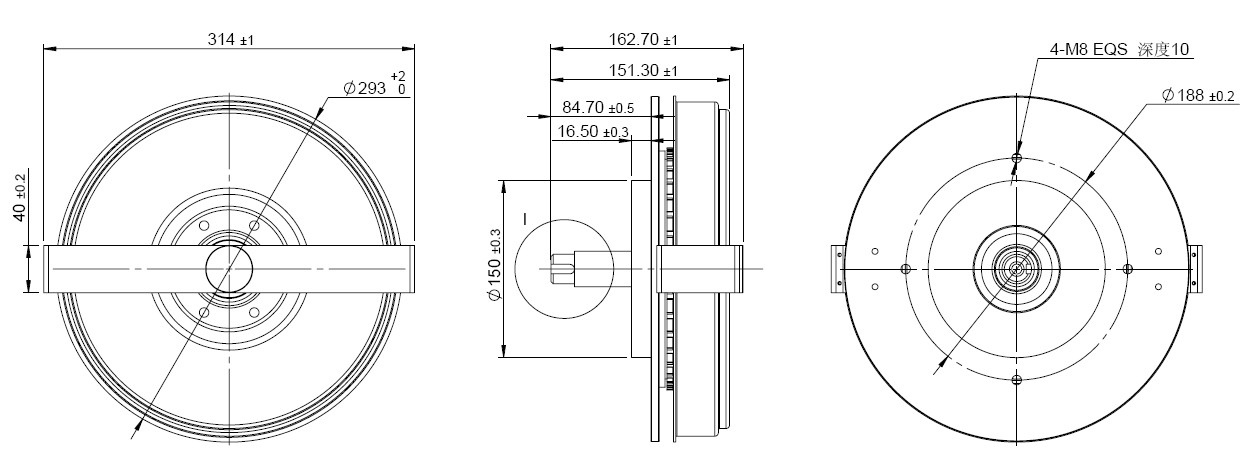

    Outline Drawing 外形图:



    Unit: Millimeter

    Performance Curve 性能曲线:

    BC080S-S01                      AC220V

           BC080S-S03                      AC220V
