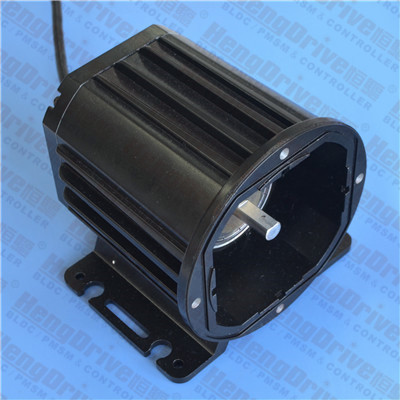

B6030P 无刷直流电机泵

  • 所属分类:[全部恒驱直流无刷电机]
  • 产品简介:特征:信号功能,锁定保护,无级调速,低噪音,低电磁干扰,超长寿命10000-30000小时
  • 订购热线:400-0755-631
  • 下载资料:资料下载

    B6030P

    Output Power 输出功率: 5W~80W

    Weight 重量:1000g (Approx.)

    Brushless DC Motor Pump-Typical Application (In development)

    无刷直流电机泵-典型应用(研发中

    Specialized for Liquid Pump, IP68

    专用于液体泵,防护等级IP68



    Model

    型号

    Voltage(V) 电压

    No Load 空载

    Rated Load 额定负载

    Stall 堵转

    Operating Range

    Rated

    Speed (rpm)

    Current (A)

    Torque (mNm)

    Speed (rpm)

    Current (A)

    Output P. (W)

    Torque (mNm)

    Current (A)

    B6030P-S01

    8-26

    24

    3190

    0.19

    150

    2847

    2.23

    44.8

    1393

    3.00

    Characteristic: Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 10000-30000hrs

    特征:信号功能,锁定保护,无级调速,低噪音,低电磁干扰,超长寿命10000-30000小时

    Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

    注意:上述规格仅针对特定客户,电压、扭矩、转速、电流、功率、输出轴的特征和尺寸等都可以按照客户的特殊要求进行调整。

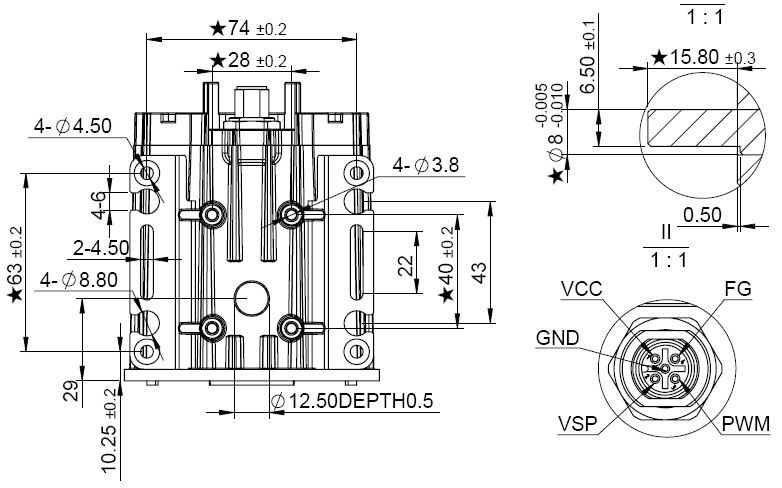

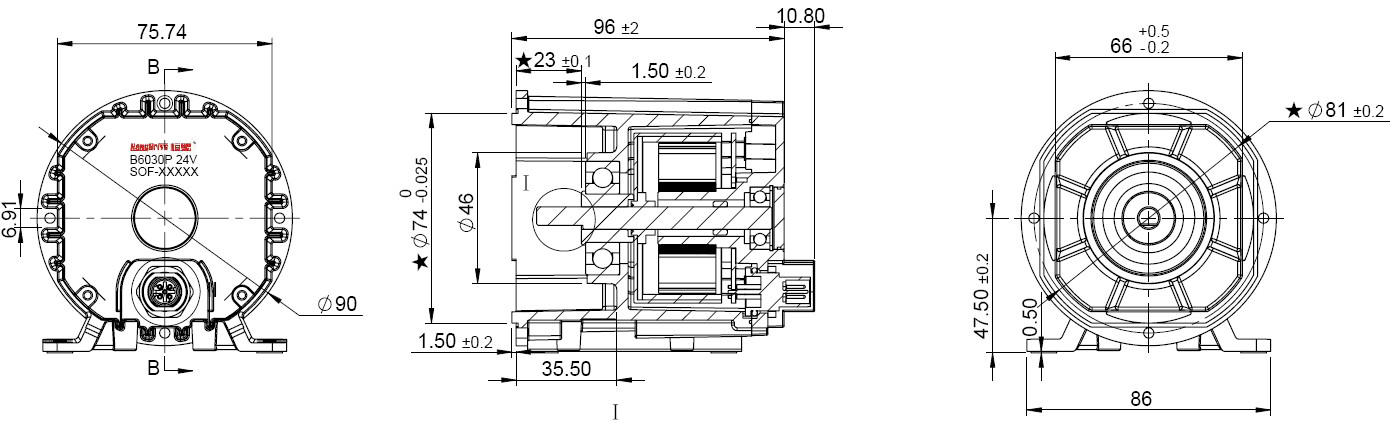

    Outline Drawing 外形图:





    Unit: Millimeter

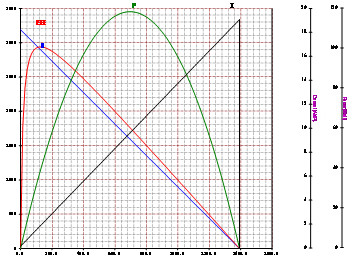

    Performance Curve 性能曲线:

    B6030P-S01                 24V
