B2934F 超高速无刷直流风机

  • 所属分类:[全部恒驱直流无刷电机]
  • 产品简介:特征:单转向,信号功能,锁定保护,3档调速,低噪音,低电磁干扰,寿命1200小时
  • 订购热线:400-0755-631
  • 下载资料:资料下载



    B2934F

    Output Power 输出功率: 10W~130W

    Weight 重量: 105g (Approx.)

    Super High Speed Brushless DC Fan--Typical Application

    超高速无刷直流风机-典型应用

    Personal Care: Hair Dryer, Hair Curler   个人护理:电吹风,卷发器

    Home Application: Vacuum Cleaner     家用电器:吸尘器

    Medical Apparatus: High-speed Fan, High-speed Air Pump

    医疗器材:高速风机,高速气泵

    Industry Facilities & Business Equipment: High-speed Fan, High-speed Air Pump
    工业及商业设备:高速风扇,高速气泵



    Model

    型号

    Voltage(V) 电压

    No Load 空载

    Rated Load 额定负载

    Stall 堵转

    Operating Range

    Rated

    Speed (rpm)

    Current (A)

    Switch

    Speed (rpm)

    Current (A)

    Output P. (W)

    Torque (mNm)

    Current (A)

    B2934F

    AC100~245

    AC110

    AC220

    112000

    -

    S1

    80000

    0.56

    72

    -

    1.2

    S2

    90000

    0.63

    83

    S3

    100000

    0.76

    95

    Characteristic: CW, Signal function available, Locked rotor protection, three speed regulation, Low noise, Low EMI, life span 1200hrs      特征:单转向,信号功能,锁定保护,3档调速,低噪音,低电磁干扰,寿命1200小时

    Notice: Data in this typical specification sheet are the standard version, it is recommended to be used directly.注意:上述规格为标准通用规格,建议直接使用。

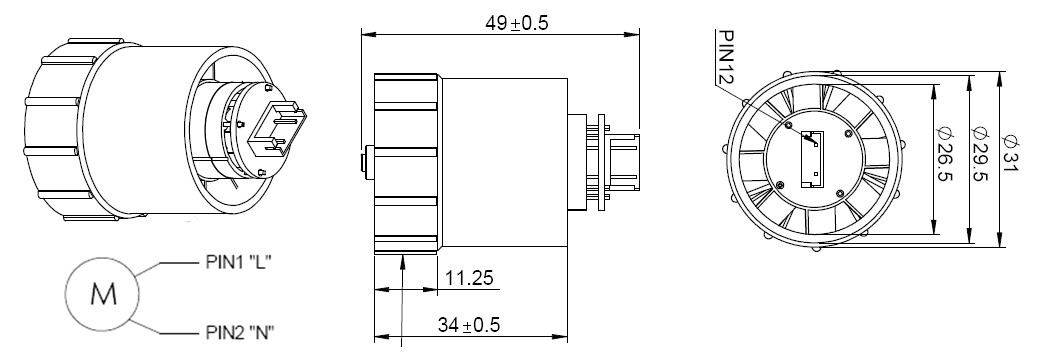

    Outline Drawing 外形图: (The housing is made of silica gel. 电机外壳为硅胶材质。)

    Usable machine screw length 3.0mm max. from motor mounting surface                 Unit: Millimeter



     Performance Curve 性能曲线:

    B2934F-S01                         AC220V

    Notes:
