B2847M 直流无刷电机

  • 所属分类:[全部恒驱直流无刷电机]
  • 产品简介:特征:双转向,信号功能,锁定保护,无级调速,低噪音,低电磁干扰,超长寿命10000-30000小时
  • 订购热线:400-0755-631
  • 下载资料:资料下载



    B2847M

    Output Power 输出功率: 1W~40W

    Weight 重量: 85g (Approx.)

    Brushless DC Motor-Typical Application 直流无刷电机-典型应用

    Automotive Parts: Pump, Valve 汽车部件:泵,

    Smart Home: Electric Curtain, Electric Actuator

    智能家居:电动窗帘,电动执行器

    Business & Industry Equipment: Linear Actuator, Electric Valve

    工商设备:电动推杆,电动阀门

    Personal Care: Hair Cutter, Electric Shaver, Massager

    个人护理:电推剪,电动须刨,按摩器



    Model

    型号

    Voltage(V) 电压

    No Load 空载

    Rated Load 额定负载

    Stall堵转

    Operating Range

    Rated

    Speed (rpm)

    Current (A)

    Torque (mNm)

    Speed (rpm)

    Current (A)

    Output P. (W)

    Torque (mNm)

    Current (A)

    B2847M-S01

    6-12

    6

    3100

    0.17

    18.0

    2401

    1.20

    4.53

    76.0

    2.50

    B2847M-S02

    8-15

    12

    5100

    0.14

    35.0

    3677

    1.74

    13.5

    124

    2.50

    B2847M-S03

    8-15

    12

    4800

    0.15

    21.0

    4058

    1.03

    8.92

    132

    2.50

    B2847M-S04

    8-26

    24

    6800

    0.10

    50.0

    5172

    1.58

    27.1

    207

    2.50

    Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 10000-30000hrs   特征:双转向,信号功能,锁定保护,无级调速,低噪音,低电磁干扰,超长寿命10000-30000小时

    Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

    注意:上述规格仅针对特定客户,电压、扭矩、转速、电流、功率、输出轴的特征和尺寸等都可以按照客户的特殊要求进行调整。

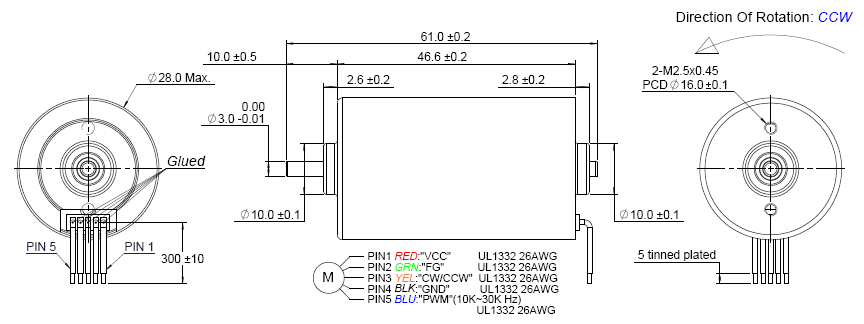

    Outline Drawing 外形图:

    Usable machine screw length 3.0mm max. from motor mounting surface

    Unit: Millimeter

    Performance Curve 性能曲线:

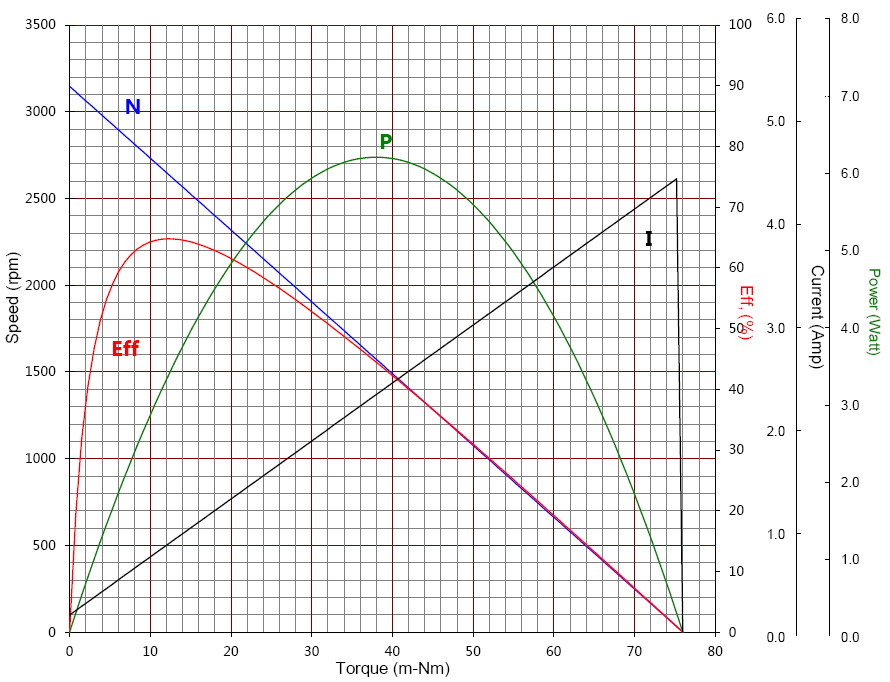

      B2847M-S01              12V

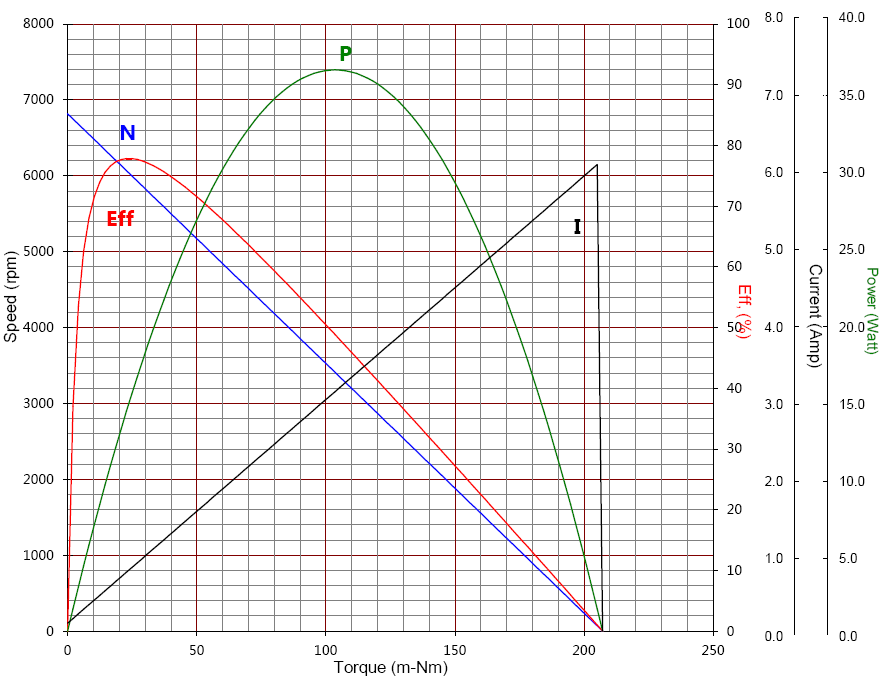

    B2847M-S04                     24V
