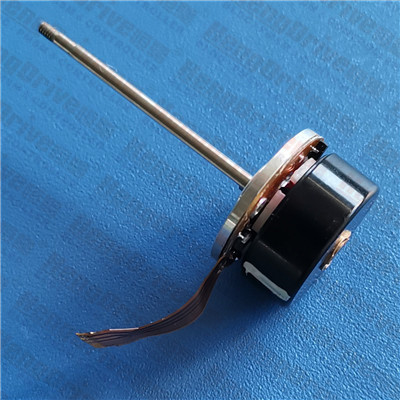

B2012S 无刷直流电机

  • 所属分类:[全部恒驱直流无刷电机]
  • 产品简介:特征:双转向,信号功能,锁定保护,无极调速,低噪音,低电磁干扰,超长寿命3000-15000小时
  • 订购热线:400-0755-631
  • 下载资料:资料下载

    B2012S

    Outer Rotor

    Output Power 输出功率: 1W~3W

    Weight 重量:40g (Approx.)

    外转子

    Brushless DC Motor-Typical ApplicationIn development

    无刷直流电机-典型应用(研发中

    With External Driving Controller  含外置驱动控制器

    Specialized for Laser Rader & Camera PTZ of Security Monitor

    专用于激光雷达和安防监控摄像云台



    Model

    型号

    Voltage(V) 电压

    No Load 空载

    Rated Load 额定负载

    Stall堵转

    Operating Range

    Rated

    Speed (rpm)

    Current (A)

    Torque (mNm)

    Speed (rpm)

    Current (A)

    Output P. (W)

    Torque (mNm)

    Current (A)

    B2012S-S01

    8-26

    9

    8350

    0.25

    3

    5419

    0.56

    1.7

    8.54

    1.12

    Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 3000-15000hrs.   特征:双转向,信号功能,锁定保护,无极调速,低噪音,低电磁干扰,超长寿命3000-15000小时

     Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

    注意:上述规格仅针对特定客户,电压、扭矩、转速、电流、功率、输出轴的特征和尺寸等都可以按照客户的特殊要求进行调整。

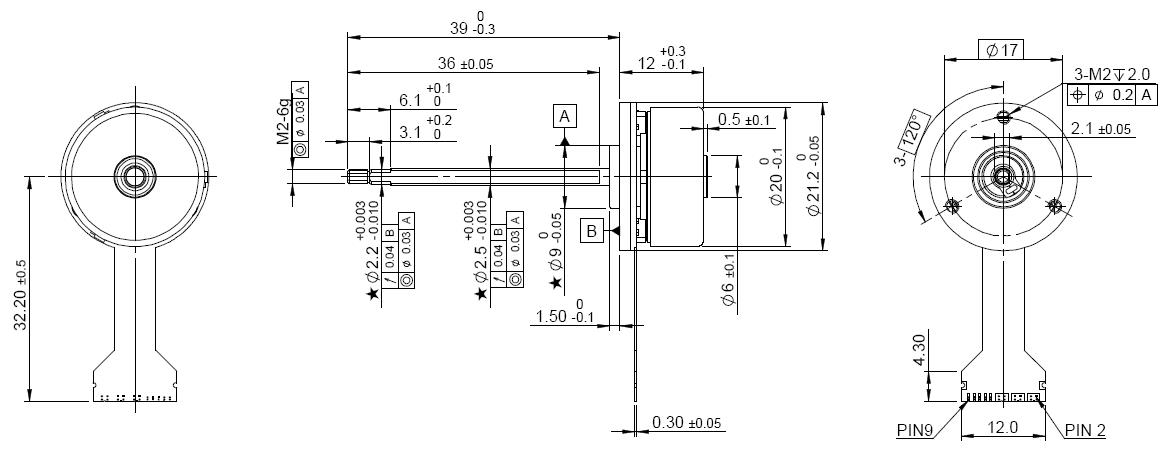

    Outline Drawing 外形图:

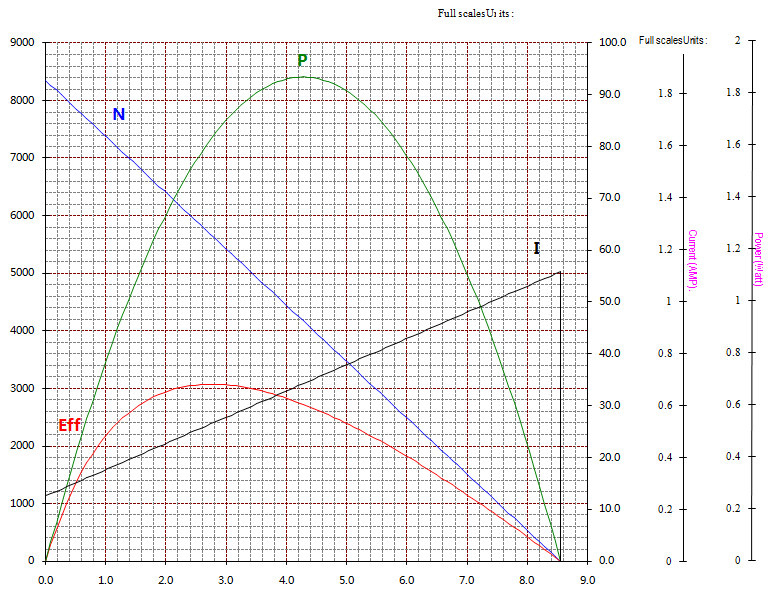

    Performance Curve 性能曲线:

      B2012S-S01                                                                   9V
