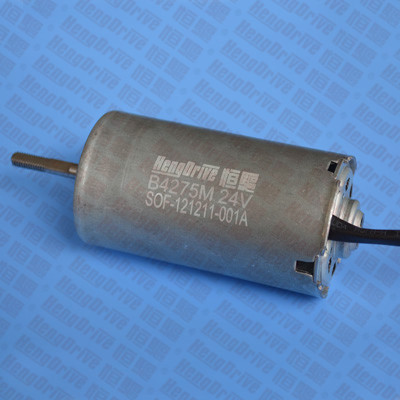

B4275M 直流无刷电机

  • 所属分类:[全部恒驱直流无刷电机]
  • 产品简介:特征:双转向,信号功能,锁定保护,无级调速,低噪音,低电磁干扰,超长寿命10000-50000小时
  • 订购热线:400-0755-631
  • 下载资料:资料下载

    B4275M

    Output Power 输出功率: 10W~60W

    Weight 重量: 330g (Approx.)

    Brushless DC Motor-Typical Application 直流无刷电机-典型应用

    Home Application: Electric Window, Electric Door, Fanner, Shredder, Meat Grinder

    家用电器:电动窗,电动门,无风叶电风扇,有风叶风扇,粉碎机,绞肉机

    Medical Apparatus: Medical Bed, Electric Wheel Chair, Surgery Tools, Operating Table, Centrifugal

    Machine   医疗器械:医疗床,电动轮椅,手术器械,手术台,离心机

    Power Tools: Screwdriver, Drill, Air Compressor    电动工具:电动螺丝批,电钻,气体压缩机

    Business Equipment: Printer, Copier, Projector, ATM, Vending Machine, Shredder

    商业设备:打印机,复印机,投影机,ATM机,售卖机,碎纸机

    Personal Care: Hair Dryer, Massager, Vibrator   个人护理:风筒,按摩器,震动器



    Model

    型号

    电压 Voltage(V)

    No Load 空载

    Rated Load 额定负载

    Stall 堵转

    Operating Range

    Rated

    Speed (rpm)

    Current (A)

    Torque (mNm)

    Speed (rpm)

    Current (A)

    Output P. (W)

    Torque (mNm)

    Current (A)

    B4275M-S01

    8-26

    12

    2511

    0.43

    107.9

    1310

    2.38

    14.8

    222

    5.0

    B4275M-S02

    8-26

    12

    2813

    0.34

    85

    2292

    2.29

    20.4

    458

    5.0

    B4275M-S03

    8-26

    18

    3790

    0.32

    84.02

    2930

    2.00

    25.8

    368

    5.0

    B4275M-S04

    8-26

    24

    4996

    0.28

    98.1

    33593

    2.23

    40.6

    468

    5.0

    Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 10000-50000hrs   特征:双转向,信号功能,锁定保护,无级调速,低噪音,低电磁干扰,超长寿命10000-50000小时

    Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

    注意:上述规格仅针对特定客户,电压、扭矩、转速、电流、功率、输出轴的特征和尺寸等都可以按照客户的特殊要求进行调整。

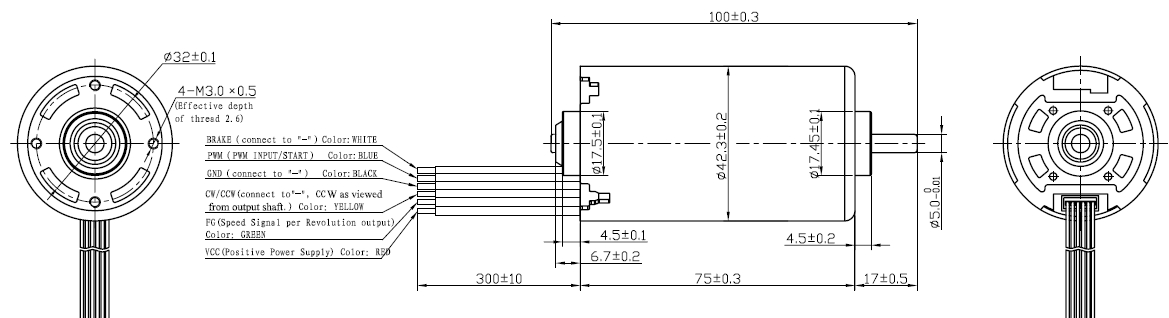

    Outline Drawing 外形图: Usable machine screw length 6.0mm max. from motor mounting surface       Unit: Millimeter

    Performance Curve 性能曲线:

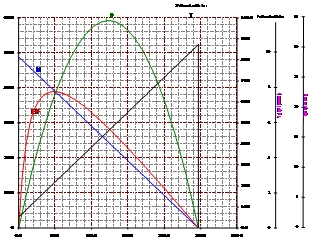

    B4275M-S01            12V DC

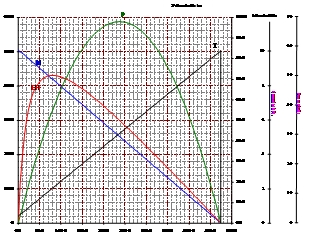

    B4275M-S04               24V
