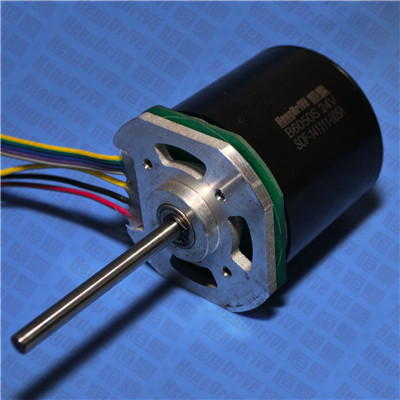

B6050S 外转子直流无刷电机

  • 所属分类:[全部恒驱直流无刷电机]
  • 产品简介:特征:高效率,双转向,信号功能,锁定保护,无级调速,低电磁干扰,超长寿命10000-30000小时
  • 订购热线:400-0755-631
  • 下载资料:资料下载


    B6050S

    Outer Rotor

    Output Power 输出功率:20W~300W

    Weight 重量: 530g (Approx.)

    外转子

    Brushless DC Motor-Typical Application 直流无刷电机-典型应用

    Automobile Parts: Pump, Actuator   汽车部件:泵,致动器

    Home Application: Pump, Stirrer, Grinder, Mincing Machine, Coffee Machine,

    Water Dispenser

    家用电器:家电泵,搅拌器,研磨机,碎肉机,咖啡机,饮水机

    Medical Apparatus: Medical Pump, Medical Stirrer,

    Centrifugal Machine, Oxygenators

    医疗器械:医疗泵,医用搅拌器,离心机,制氧机

    Industry Equipment: Air Compressor, Electric Valve

    工业设备:气体压缩机,电动阀门

    Business Equipment: Printer, Copier, ATM, Vending Machine, Shredder

    商业设备:打印机,复印机,ATM机,售卖机,碎纸机



    Model

    型号

    Voltage(V) 电压

    No Load 空载

    Rated Load 额定负载

    Stall 堵转

    Operating Range

    Rated

    Speed (rpm)

    Current (A)

    Torque (mNm)

    Speed (rpm)

    Current (A)

    Output P. (W)

    Torque (mNm)

    Current (A)

    B6050S-S01

    8-26

    12

    2831

    0.84

    200.12

    2433

    6.02

    50.99

    1423.59

    20

    B6050S-S02

    8-26

    24

    3895

    0.58

    317.35

    3262

    5.66

    108.4

    1951.02

    20

    B6050S-S03

    36-48

    36

    2862

    0.28

    600.57

    2243

    5.46

    141.09

    2777.49

    10



    Characteristic: High Efficiency, CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low EMI, Long life 10000-30000hrs

    特征:高效率,双转向,信号功能,锁定保护,无级调速,低电磁干扰,超长寿命10000-30000小时

    Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

    注意:上述规格仅针对特定客户,电压、扭矩、转速、电流、功率、输出轴的特征和尺寸等都可以按照客户的特殊要求进行调整。

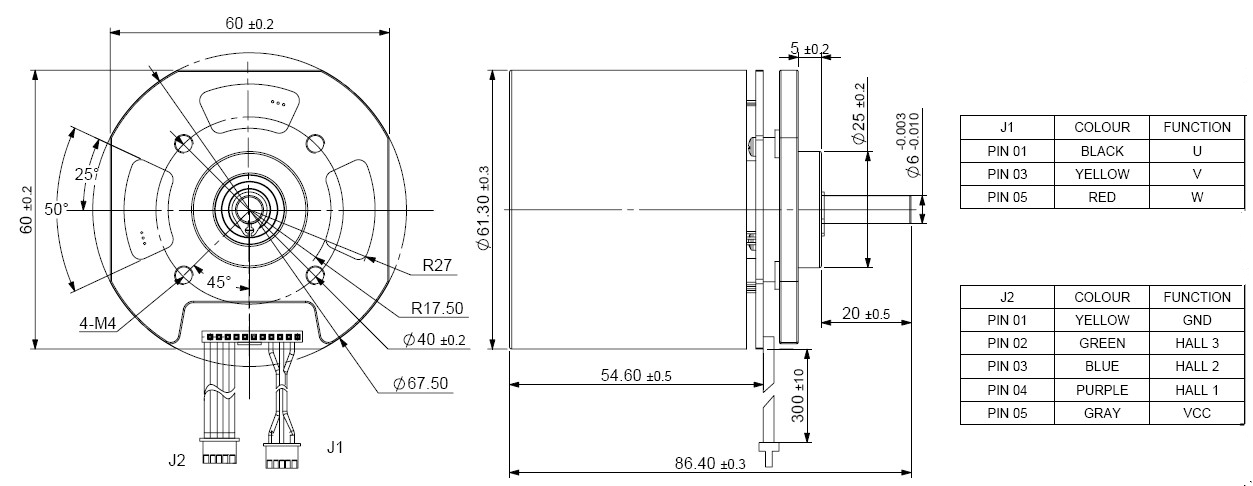

    Outline Drawing 外形图:



    Unit: Millimeter

    Performance Curve 性能曲线:

    B6050S-S02                 24V
