B5665G 无刷直流减速电机

  • 所属分类:[直流无刷-减速齿轮电机]
  • 产品简介:Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI
  • 订购热线:400-0755-631
  • 下载资料:资料下载

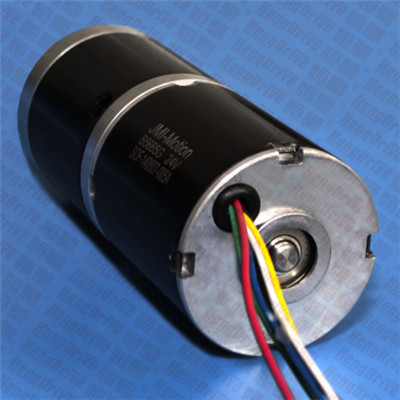

    B5665G

    Output Power: 10W~200W

    Weight: 700g (Approx.)

    Brushless DC Gear Motor-Typical Application 无刷直流减速电机-典型应用

    Home Application: Electric door, Electric Window, Electric Curtain, Electric Awning

    家用电器:电动门,电动窗,电动窗帘,电动遮阳棚,

    Industry Facility: Transmission Equipment, Gear System, Actuator

    工业设备:传动机械,齿轮系统,致动器

    Electronic Equipment: Electric Valve, Switcher, Lighting Adjustor, Small Percussion Drill

    电控设备:电动阀门,切换器,灯光调节器,电动扳手

    Business Equipment: Electric Gate, Banking Facility, ATM, Vending Machine

    商业设备:电动门禁,银行设施,ATM机,售卖机

    Personal Care: Massager

    个人护理:按摩器





    Model

    Voltage(V)

    No Load

    Rated Load

    Stall 堵转

    Operating Range

    Rated

    Speed (rpm)

    Current (A)

    Torque (Nm)

    Speed (rpm)

    Current (A)

    Output P. (W)

    Torque (Nm)

    Current (A)

    B5665G-S01

    (Gear Ratio 220.3)

    8-26

    24

    7

    0.2

    10

    5

    1.5

    18.9

    20

    8.00

    Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI

    Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power, gear box ratio & dimension, shaft extension feature & dimension can be changed to meet customer specific requirement.

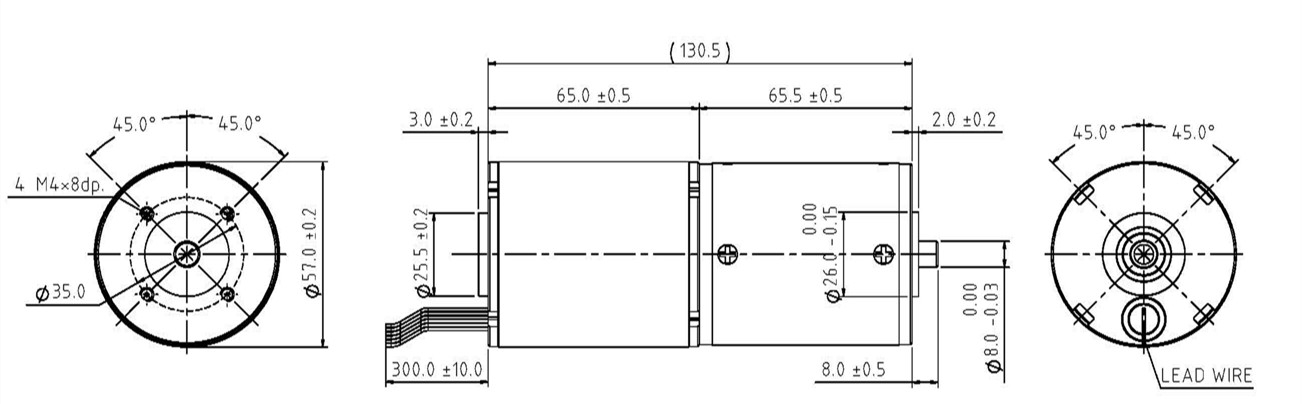

    Outline Drawing:  (Unit: Millimeter)

    BLDC Motor Performance Curve:

    B5665G-S01(Bare Motor)           24V
