B5035M无刷直流电机

  • 所属分类:[全部恒驱直流无刷电机]
  • 产品简介:特征:不含驱动控制器,低噪音,低电磁干扰,超长寿命10000-50000小时
  • 订购热线:400-0755-631
  • 下载资料:资料下载

    B5035M

    Output Power 输出功率: 10W~30W

    Weight 重量: 470g (Approx.)

    Brushless DC Motor-Typical Application 直流无刷电机-典型应用

    Specialized for Auto turbocharger专用于汽车涡轮增压器

    Without Driving Controller 不含驱动控制器



    Model

    型号

    电压 Voltage(V)

    No Load 空载

    Rated Load 额定负载

    Stall 堵转

    Operating Range

    Rated

    Speed (rpm)

    Current (A)

    Torque (mNm)

    Speed (rpm)

    Current (A)

    Output P. (W)

    Torque (mNm)

    Current (A)

    B5035M-S01

    8~26

    24

    3720

    0.15

    39.2

    3014

    0.73

    12.4

    206

    3.2

    Characteristic: Low noise, Low EMI, Long life 10000-50000hrs   特征:低噪音,低电磁干扰,超长寿命10000-50000小时

    Notice: Data in this typical specification sheet are for other certain customer, the specific BLDC motor performance and dimension can be changed by adjusting winding, magnetic field, controller parameter and relevant mechanical factor to meet different customer requirement.

    注意:上述规格仅针对特定客户,对于您的特殊要求,可以通过调整绕组、磁场、控制参数和相关机械参数来达到您的不同要求。

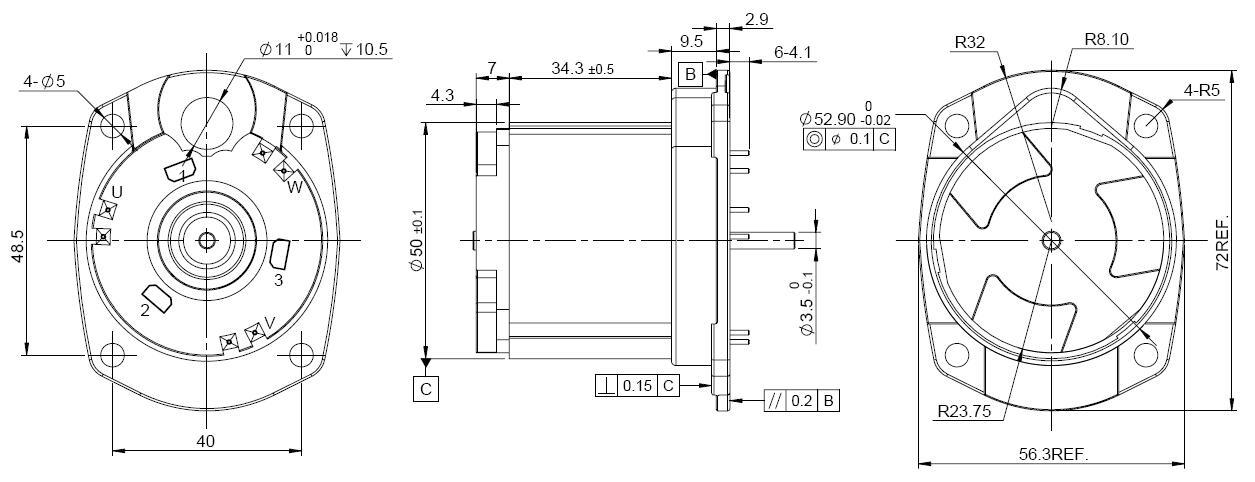

    Outline Drawing 外形图:

    Usable machine screw length 8.0mm max. from motor mounting surface

    Unit: Millimeter

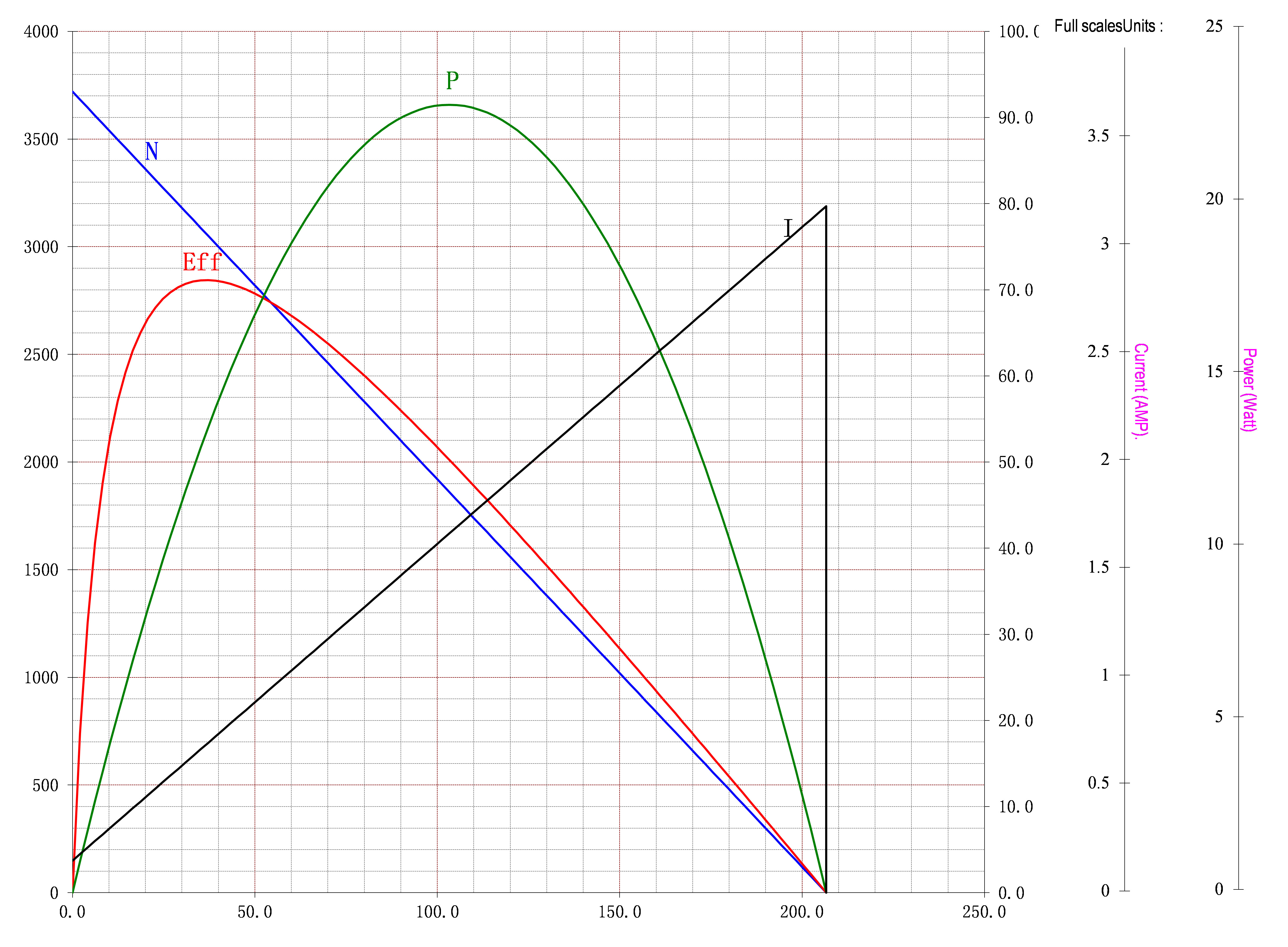

    Performance Curve 性能曲线:

    B5035M-S01                        24V
