B4333G 无刷直流减速电机

    B4333G

    Output Power 输出功率: 10W~100W

    Weight 重量: 400g (Approx.)

    Brushless Gear Motor-Typical Application (In development)

    无刷直流减速电机-典型应用 (研发中)

    Automobile Parts: Braking System

    汽车部件:刹车制动系统

    Model
    型号

    Voltage(V) 电压

    No Load 空载

    Rated Load 额定负载

    Stall 堵转

    Operating Range

    Rated

    Speed (rpm)

    Current (A)

    Torque (Nm)

    Speed (rpm)

    Current (A)

    Output P. (W)

    Torque (Nm)

    Current (A)

    B4333G-S01  Gear Ratio751

    8-48
    48
    93
    0.094
    8.1
    66
    2.2
    55.9
    28
    5.0

    Characteristic: U, V, W wires, Low noise, Low EMI, Long life 10000-50000hrs   特征:UVW 三相线,低噪音,低电磁干扰,超长寿命10000-50000小时

    Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

    注意:上述规格仅针对特定客户,电压、扭矩、转速、电流、功率、输出轴的特征和尺寸等都可以按照客户的特殊要求进行调整。

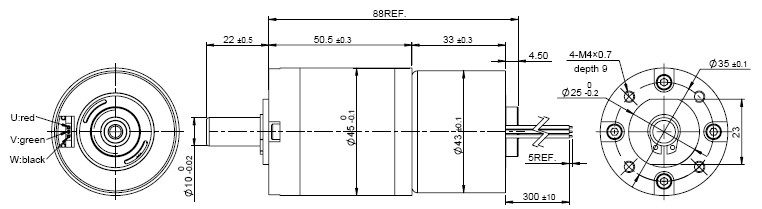

    Outline Drawing 外形图:





    Usable machine screw length 8.0mm max. from motor mounting surface



    Unit: Millimeter

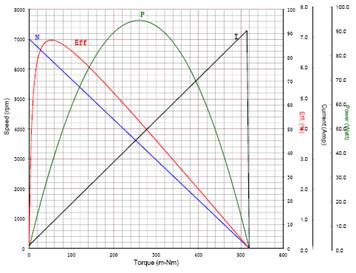

    Performance Curve 性能曲线:

    B4333G-S01Bare Motor单体电机)      48V
