B4228S 外转子无刷电机

  • 所属分类:[全部恒驱直流无刷电机]
  • 产品简介:特征:双转向信号功能,锁定保护,低惯量,,低噪音,低电磁干扰,超长寿命10000-30000小时
  • 订购热线:400-0755-631
  • 下载资料:资料下载

    B4228S

    Outer Rotor

    Output Power 输出功率: 50W~200W

    Weight 重量:140 g (Approx.)

    外转子

    Brushless Motor-Typical Application无刷电机-典型应用

    Home Application: Vacuum cleaner, Stirrer, High speed fan

    家用电器:吸尘器,搅拌器,高速风扇

    Personal Care: Hair Dryer, 个人护理:电吹风

    Medical Apparatus: Medical Stirrer, centrifugal Machine

     医疗器械:医用搅拌器,离心机,制氧机

    Industry Equipment: clearing machine, blower fan

    工业设备:清洁机,鼓风机

    Business Equipment: Cordless drill, electric tool商业设备:充电钻,电动工具



    Model

    型号

    电压 Voltage(V)

    No Load 空载

    Rated Load 额定负载

    Stall 堵转

    Operating Range

    Rated

    Speed (rpm)

    Current (A)

    Torque (mNm)

    Speed (rpm)

    Current (A)

    Output P. (W)

    Torque (mNm)

    Current (A)

    B4228S-S01

    8-20

    14.4

    29114

    1.62

    40

    24479

    9.02

    102.5

    251.3

    15

    B4228S-S02

    8-20

    18

    32013

    1.55

    45

    25962

    9.86

    122.3

    238.0

    15

    B4228S-S03

    12-26

    24

    29900

    1.08

    50

    23753

    7.55

    124.3

    243.2

    15

    B4228S-S04

    AC85-165V

    110VAC

    25420

    0.31

    40

    19278

    1.43

    80.7

    165.4

    2.0

    B4228S-S05

    AC185-265V

    220VAC

    24300

    0.22

    40

    19495

    0.93

    81.6

    202.0

    2.0

    B4228S-S06

    DC310V

    310VDC

    25033

    0.23

    40

    19538

    0.96

    81.2

    201.0

    2.0

    B4228S-S07

    AC185-265V

    220VAC

    28300

    0.24

    60

    21000

    1.40

    132.0

    234.0

    2.5

    B4228S-S08

    AC185-265V

    220VAC

    31400

    0.27

    60

    24000

    1.55

    151.0

    257.0

    2.5

    B4228S-S09

    AC185-265V

    220VAC

    33300

    0.28

    70

    25000

    1.88

    183.0

    281.0

    2.5

    Characteristic: Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 10000-30000hrs   特征:信号功能,锁定保护,无级调速,低噪音,低电磁干扰,超长寿命10000-30000小时

    Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

    注意:上述规格仅针对特定客户,电压、扭矩、转速、电流、功率、输出轴的特征和尺寸等都可以按照客户的特殊要求进行调整。

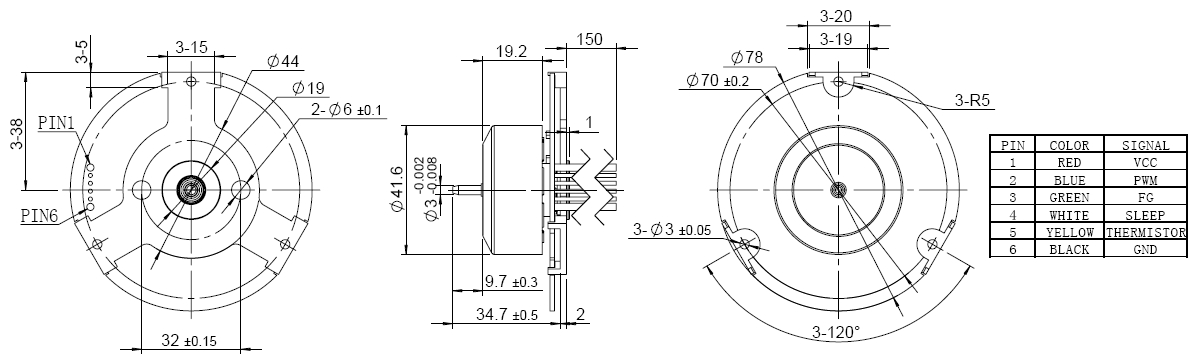

    Outline Drawing 外形图:



    Unit: Millimeter

    Performance Curve 性能曲线:

    B4228S-S01                  14.4V

       B4228S-S05              220V
