B3626M无刷直流电机
- 所属分类：[全部恒驱直流无刷电机]
- 产品简介：特征：双转向，信号功能，锁定保护，无级调速，低噪音，低电磁干扰，超长寿命10000-50000小时
- 订购热线：400-0755-631
- 下载资料：资料下载
|
|
B3626M |
Output Power 输出功率: 1W~40W |
Weight 重量: 95g (Approx.) |
|
Brushless DC Motor-Typical Application 直流无刷电机-典型应用 Automotive Parts: Pump, Fan 汽车部件：泵，风机 Home Application: White Goods, Small Appliance, Fanner, Electric Curtain 家用电器：白色家电，小家电，风扇，电动窗帘 Medical Apparatus: Medical Pump, Surgery Tools, Medical Stirrer, Centrifugal Machine 医疗器械：医疗泵，手术器械，搅拌机，离心机 Business Equipment: Printer, Copier, Projector, ATM, Vending Machine 商业设备：打印机，复印机，投影机，ATM机，售卖机 Industry Equipment: Electric Valve, Actuator, Micro Pump工业设备：阀门，致动器，微型泵 Personal Care: Hair Dryer, Electric Shaver, Massager 个人护理：风筒，电动须刨，按摩器 |
|||
|
Model 型号 |
Voltage(V) 电压 |
No Load 空载 |
Rated Load 额定负载 |
Stall 堵转 |
||||||
|
Operating Range |
Rated |
Speed (rpm) |
Current (A) |
Torque (mNm) |
Speed (rpm) |
Current (A) |
Output P. (W) |
Torque (mNm) |
Current (A) |
|
|
B3626M-S01 |
8-26 |
9 |
2720 |
0.12 |
13.73 |
1812 |
0.54 |
2.62 |
40.4 |
2.5 |
| B3626M-S02 | 8-26 | 12 |
4460 |
0.18 |
10.79 |
3750 |
0.57 |
4.23 |
66.74 |
2.5 |
|
B3626M-S03 |
8-26 | 24 |
5998 |
0.12 |
15 |
4858 |
0.50 |
7.63 |
78.91 |
2.5 |
| B3626M-S04 | 8-26 | 24 |
11990 |
0.35 |
14.715 |
9420 |
0.996 |
14.52 |
63.79 |
2.5 |
|
B3626M-S05 |
8-26 | 24 |
39845 |
0.26 |
9.81 |
33327 |
1.78 |
34.24 |
58.99 |
3.0 |
Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 10000-50000hrs 特征：双转向，信号功能，锁定保护，无级调速，低噪音，低电磁干扰，超长寿命10000-50000小时
|
Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement. 注意：上述规格仅针对特定客户，电压、扭矩、转速、电流、功率、输出轴的特征和尺寸等都可以按照客户的特殊要求进行调整。 |

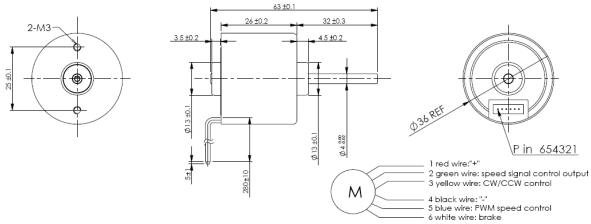

Outline Drawing 外形图:
|
|
Unit: Millimeter |
Performance Curve 性能曲线:
|
B3626M-S05 24V |
