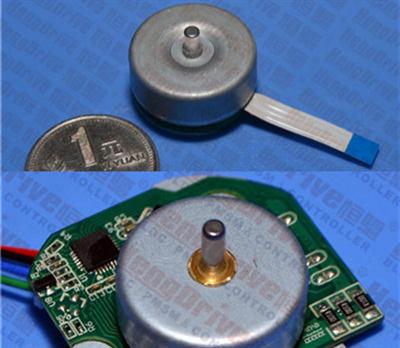

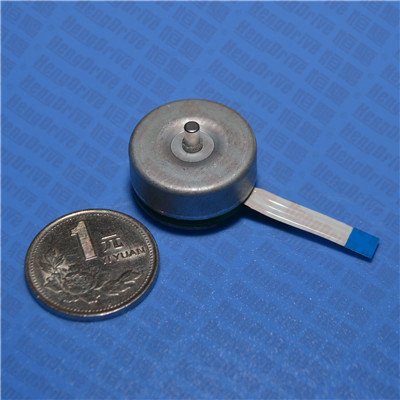

B2410S外转子 直流无刷电机

  • 所属分类:[全部恒驱直流无刷电机]
  • 产品简介:双转向,信号功能,锁定保护,低惯量,,低噪音,低电磁干扰,超长寿命3000-15000小时以上
  • 订购热线:400-0755-631
  • 下载资料:资料下载

    /UploadFiles/Product/20201106120336_14464.jpg

    B2410S

    Outer Rotor

    Output Power 输出功率: 0.05W~15W

    Weight 重量: 20-25g (Approx.)

    外转子

    3-Phase Brushless DC Motor-Typical Application 三相无刷直流电机-典型应用



    Home Application: Clean Robotics, Mini Air Fresher



    家用电器:扫地机器人,空气净化器



    Personal Care: Gas Breathing Mask



    个人护理:呼吸机,呼吸过滤面罩



    Model

    型号

    电压 Voltage(V)

    No Load 空载

    Rated Load 额定负载

    Stall堵转

    Operating Range

    Rated

    Speed (rpm)

    Current (A)

    Torque (mNm)

    Speed (rpm)

    Current (A)

    Output P. (W)

    Torque (mNm)

    Current (A)

    B2410S-S01

    3

    3

    3674

    0.05

    0.196

    3146

    0.078

    0.065

    1.36

    0.24

    B2410S-S02

    5-12

    5

    3900

    0.16

    2.943

    2790

    0.43

    0.86

    9.74

    1.03

    B2410S-S03

    7.2

    7.2

    11742

    0.42

    4.905

    8506

    1.54

    4.37

    17.79

    4.49

    B2410S-S04

    8-27

    14

    17151

    0.45

    7.85

    13213

    1.47

    10.86

    33.20

    4.82

    B2410S-S05

    8-15

    12

    15933

    0.37

    5.98

    13074

    1.2

    8.2

    33.11

    3.0

    B2410S-S06

    8-15

    12

    19926

    0.65

    9.0

    14427

    2.39

    13.59

    32.51

    3.0



    Characteristic: CW & CCW, Stepless speed regulation, Low noise, Low EMI, Long life 3000-15000hrs

    特征:双转向,信号功能,锁定保护,无级调速,低噪音,低电磁干扰,超长寿命3000-15000小时

    Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

    注意:上述规格仅针对特定客户,电压、扭矩、转速、电流、功率、输出轴的特征和尺寸等都可以按照客户的特殊要求进行调整。

    Outline Drawing 外形图:  (Unit: Millimeter)

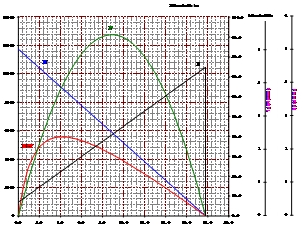

    Performance Curve 性能曲线:

    B2410S-S02             5V

    B2410S-S03              7.2V
