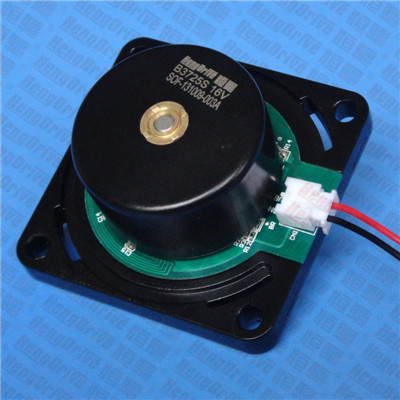

B3725S外转子无刷直流电机

  • 所属分类:[全部恒驱直流无刷电机]
  • 产品简介:特征:双转向信号功能,锁定保护,低惯量,,低噪音,低电磁干扰,超长寿命10000小时以上
  • 订购热线:400-0755-631
  • 下载资料:资料下载



    B3725S

    Outer Rotor

    Output Power 输出功率: 2W~25W

    Weight 重量: 120g (Approx.)

    外转子

    Brushless DC Motor-Typical Application 直流无刷电机-典型应用

    Home Application: White Goods, Small Appliance, Electric Fanner, Stirrer

    家用电器:贯流风机,白色家电,小家电,电风扇,搅拌器

    Medical Apparatus: Medical Pump, Medical Stirrer, centrifugal Machine

    医疗器械:医疗泵,医用搅拌机,离心机

    Industry Facility: Electric Valve, Linear Actuator   工业设备:电动阀门,线性驱动器

    Business Equipment: Printer, Copier, Projector, ATM, Vending Machine

    商业设备:打印机,复印机,投影机,ATM机,售卖机



    Model

    型号

    Voltage(V) 电压

    No Load 空载

    Rated Load 额定负载

    Stall 堵转

    Operating Range

    Rated

    Speed (rpm)

    Current (A)

    Torque (mNm)

    Speed (rpm)

    Current (A)

    Output P. (W)

    Torque (mNm)

    Current (A)

    B3725S-S01

    8-26

    12

    3390

    0.12

    39.24

    2120

    1.30

    8.73

    80

    2.8

    B3725S-S02

    8-26

    16

    4850

    0.20

    29.14

    4100

    1.10

    12.53

    78

    2.8

    B3725S-S03     (直驱Direct Drive

    8-26

    24

    4460

    0.13

    42.97

    3300

    0.93

    14.98

    129

    2.4

    Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 10000-30000hrs

    特征:双转向,信号功能,锁定保护,无级调速,低噪音,低电磁干扰,超长寿命10000-30000小时

    Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

    注意:上述规格仅针对特定客户,电压、扭矩、转速、电流、功率、输出轴的特征和尺寸等都可以按照客户的特殊要求进行调整。

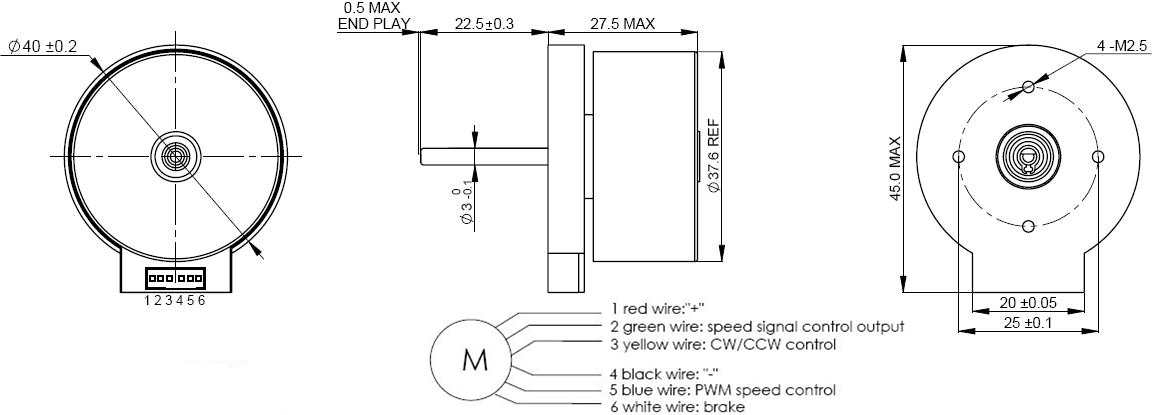

    Outline Drawing 外形图:  (Unit: Millimeter)

    Performance Curve 性能曲线:

    B3725S-S01               12V

    B3725S-S03               24V
