B3020S 外转子直流无刷电机

  • 所属分类:[全部恒驱直流无刷电机]
  • 产品简介:三相外转子无刷电机,超低噪音、超长寿命、超高效率、超优EMC,广泛适用于空气清新机、气体过滤器、小功率风扇、增湿器等。
  • 订购热线:400-0755-631

    B3020S外转子无刷马达

    B3020S

    Outer Rotor

    Output Power 输出功率: 0.3W~12W

    Weight 重量: 75g (Approx.)

    外转子

    3-Phase Brushless DC Motor-Typical Application 三相无刷直流电机-典型应用

    Home Application: Small Electric Fanner, USB Fan, Small Air Fresher, Electric Cooker  家用电器:小功率电风扇,USB电风扇,小功率空气清新机,电饭煲

    Medical Apparatus: Medical Pump, Medical Blower, Super-Silence Fan   医疗器械:医疗泵,超静音风扇

    Industry Equipment: Electric Valve, Actuator  工业设备:电动阀门、致动器

    Business Equipment: Printer, Copier, Projector   商业设备:打印机,复印机,投影机

    Personal Care: Shaver, Hair Dryer, Massager   个人护理:电动剃须刀,风筒,按摩器



    Model

    型号

    电压 Voltage(V)

    No Load 空载

    Rated Load 额定负载

    Starting 起动

    Operating Range

    Rated

    Speed (rpm)

    Current (A)

    Torque (mNm)

    Speed (rpm)

    Current (A)

    Output P. (W)

    Torque (mNm)

    Current (A)

    B3020S-S01 (RU-M)

    5-12

    5

    4600

    0.26

    1.472

    4150

    0.36

    0.64

    15.12

    1.29

    B3020S-S02(NdFeB)

    5-12

    5

    3060

    0.19

    6.308

    2130

    0.42

    1.41

    20.56

    0.96

    B3020S-S03 (RU-M)

    8-26

    12

    11450

    0.17

    4.433

    8530

    0.49

    3.96

    17.39

    1.44

    B3020S-S04(NdFeB)

    8-26

    12

    7090

    0.19

    9.391

    5440

    0.63

    5.35

    40.54

    2.09

    B3020S-S05 (RU-M)

    8-26

    24

    14680

    0.11

    5.886

    7810

    0.37

    4.82

    12.57

    0.66

    B3020S-S06(NdFeB)

    8-26

    24

    11450

    0.15

    10.864

    9050

    0.57

    10.30

    51.89

    2.16

    Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 10000-30000hrs   特征:双转向,信号功能,锁定保护,无级调速,低噪音,低电磁干扰,超长寿命10000-30000小时

    Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

    注意:上述规格仅针对特定客户,电压、扭矩、转速、电流、功率、输出轴的特征和尺寸等都可以按照客户的特殊要求进行调整。

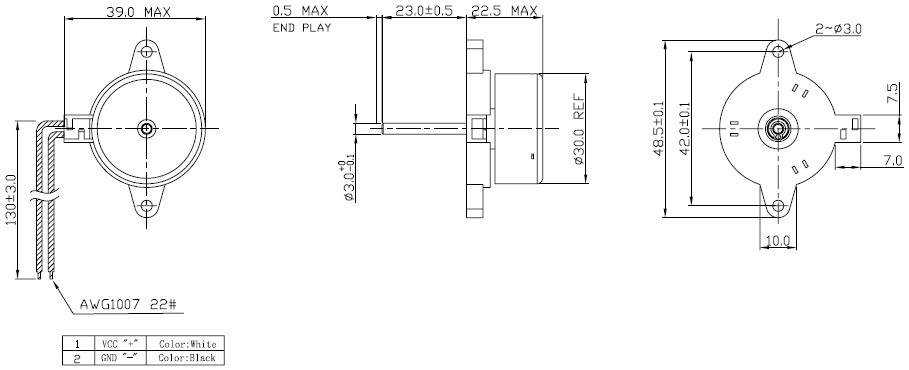

    Outline Drawing 外形图:  (Unit: Millimeter)

    Performance Curve 性能曲线:

    B3020S-S01                     5V DC

    B3020S-S05                       24V DC
