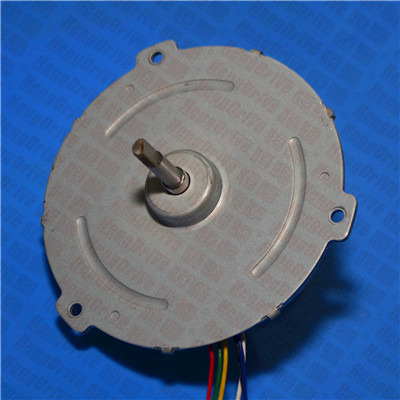

B8035M 无刷电机

  • 所属分类:[全部恒驱直流无刷电机]
  • 产品简介:特征:双转向,信号功能,锁定保护,无级调速,低噪音,低电磁干扰,超长寿命10000-50000小时
    用途:空气净化器,风扇、风机类产品
  • 订购热线:400-0755-631
  • 下载资料:资料下载







    B8035M

    Output Power 输出功率: 10W~50W

    Weight 重量: 506g (Approx.)





    Brushless DC Motor-Typical Application 直流无刷电机-典型应用

    Home Application: White goods, air purifier, electric fan, exhaust fan, tubular fan, air

    blower 家用电器:白色家电,空气净化器,电风扇,排气扇,贯流风机,冷暖风机

    Automobile Parts: Auto Fan, Auto Pumps 汽车部件:汽车风扇 汽车泵

    Medical Apparus: Medical blower, Medical mixer  医疗器械:医用风机,医用搅拌机

    Power Toors: Air Pump, Air Compressor 电动工具:气泵,气体压缩机

    Industry Equipment: Power Machine, Tranmission gear equipment 工业设备:动力、传动设备







    Model

    型号

    电压 Voltage(V)

    No Load 空载

    Rated Load 额定负载

    Stall 堵转

    Operating Range

    Rated

    Speed (rpm)

    Current (A)

    Torque (mNm)

    Speed (rpm)

    Current (A)

    Output P. (W)

    Torque (mNm)

    Current (A)

    B8035M-S01

    12-26

    24

    3202

    0.46

    132

    2753

    2.23

    38.05

    939.5

    6.0

    B8035M-S02

    12-26

    24

    1429

    0.13

    132

    1204

    0.92

    16.64

    836.2

    2.97

    B8035M-S03

    DC100-340V

    DC310V外置

    3262

    0.036

    132

    2742

    0.17

    37.91

    694.5

    1.0

    B8035M-S04

    12-26

    24

    3154

    0.199

    132

    2128

    1.67

    29.41

    405.8

    4.7

    B8035M-S05

    12-26

    24

    5579

    0.348

    40

    5170

    1.13

    21.66

    546.2

    3.3

    Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 10000-50000hrs   特征:双转向,信号功能,锁定保护,无级调速,低噪音,低电磁干扰,超长寿命10000-50000小时

    Notice: Data in this typical specification sheet are for other certain customer, the specific BLDC motor performance and dimension can be changed by adjusting winding, magnetic field, controller parameter and relevant mechanical factor to meet different customer requirement.

    注意:上述规格仅针对特定客户,对于您的特殊要求,可以通过调整绕组、磁场、控制参数和相关机械参数来达到您的不同要求。

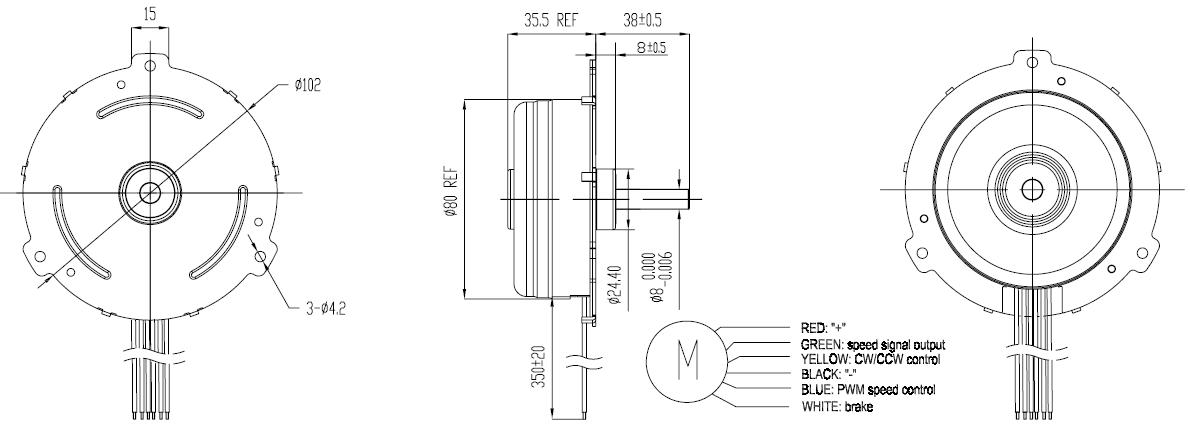

    Outline Drawing 外形图:

    Usable machine screw length 8.0mm max. from motor mounting surface

    Unit: Millimeter

    Performance Curve 性能曲线:

    B8035M-S01                    24V

          B8035M-S02                     24V
