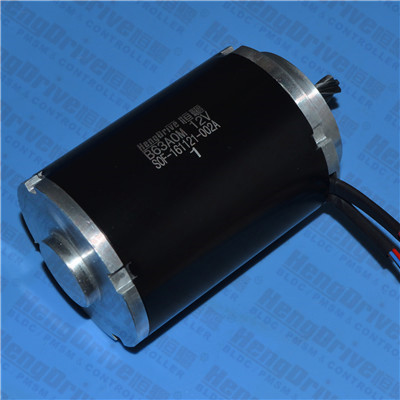

B63A0M 直流无刷电机

  • 所属分类:[全部恒驱直流无刷电机]
  • 产品简介:特征:双转向,信号功能,锁定保护,无极调速,低噪音,低电磁干扰,超长寿命10000-50000小时
  • 订购热线:400-0755-631
  • 下载资料:资料下载

    B63A0M

    Output Power 输出功率: 100-200W

    Weight 重量:1350g (Approx.)

    Brushless DC Motor-Typical ApplicationIn development

    直流无刷电机-典型应用研发中

    Automotive Parts: Pump    汽车部件:泵

    Medical Apparatus: Medical Bed, Operating Table    医疗器械:医疗床,手术台

    Business Equipment: Adjustable Table, Linear Actuator    商业设备:升降桌,电动推杆

    Industrial Equipment: Harvester, Automation Equipment  工业设备:收割机,自动化设备


    Model
    型号
    电压 Voltage(V)

    No Load 空载

    Rated Load 额定负载

    Stall 堵转

    Operating Range

    Rated

    Speed (rpm)

    Current (A)

    Torque (mNm)

    Speed (rpm)

    Current (A)

    Output P. (W)

    Torque (mNm)

    Current (A)

    B63A0M-S01
    8-26
    24
    6061
    1.3
    350
    4900
    9.5
    180.2
    1852.8
    20

    Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 10000-50000hrs

    特征:双转向,信号功能,锁定保护,无极调速,低噪音,低电磁干扰,超长寿命10000-50000小时

    Notice: Data in this typical specification sheet are for other certain customer, the specific BLDC motor performance and dimension can be changed by adjusting winding, magnetic field, controller parameter and relevant mechanical factor to meet different customer requirement.

    注意:上述规格仅针对特定客户,对于您的特殊要求,可以通过调整绕组、磁场、控制参数和相关机械参数来达到您的不同要求。

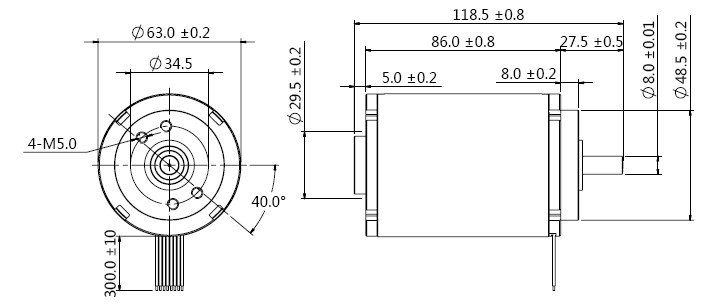

    Outline Drawing 外形图:



    Usable machine screw length 8.0mm max. from motor mounting surface

    Unit: Millimeter

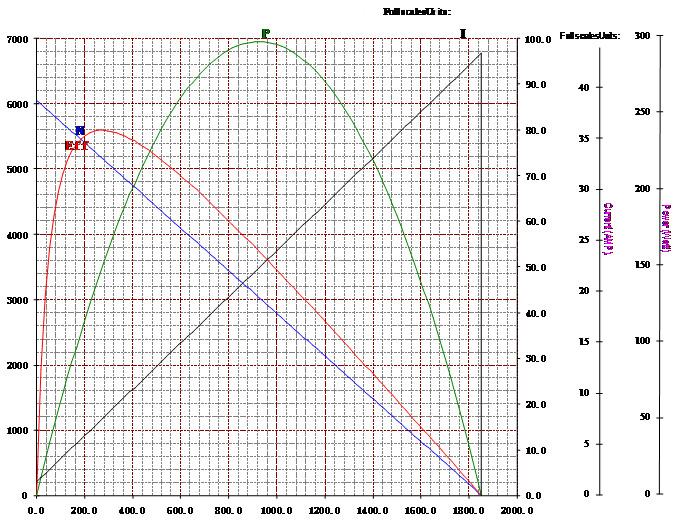

    Performance Curve 性能曲线:

    B63A0M-S01                24V
