富士康科技集团控股子公司
专业研发、生产无刷电机和永磁同步电机及其驱动器

B2832M 直流无刷电机

  • 所属分类:[全部恒驱直流无刷电机]
  • 产品简介:特征:双转向,信号功能,锁定保护,无级调速,低噪音,低电磁干扰,超长寿命10000-30000小时
  • 订购热线:400-0755-631
  • 下载资料:资料下载









    B2832M

    Output Power 输出功率: 1W~28W

    Weight 重量: 74g (Approx.)

    Brushless DC Motor-Typical ApplicationIn development 直流无刷电机-典型应用(研发中)

    Automotive Parts: Pump   汽车部件:泵

    Home Application: White Goods, Small Appliance, Fanner,

    Electric Curtain

    家用电器:白色家电,小家电,电风扇,电动窗帘

    Medical Apparatus: Medical Pump, Blood Pressure Meter,

    Surgery Tools, Medical Stirrer, Centrifugal Machine

    医疗器械:医疗泵,血压计,手术器械,搅拌机,离心机

    Industry Equipment: Electric Valve, Portable Screwdriver,

    Air Pump, Water Pump,Vacuum Pump

    电动工具:电动阀门,手持电批,气泵,水泵,真空泵

    Business Equipment: Printer, Copier, Projector, Scanner,

    Cash Register

    商业设备:打印机,复印机,投影机,扫描仪,点钞机

    Personal Care: Hair Dryer, Electric Shaver, Massager

    个人护理:风筒,电动须刨,按摩器



    Model

    型号

    Voltage(V) 电压

    No Load 空载

    Rated Load 额定负载

    Stall堵转

    Operating Range

    Rated

    Speed (rpm)

    Current (A)

    Torque (mNm)

    Speed (rpm)

    Current (A)

    Output P. (W)

    Torque (mNm)

    Current (A)

    B2832M-S01

    8-15

    6

    4169

    0.16

    8.00

    3249

    0.755

    2.72

    36.228

    2.849

    B2832M-S02

    8-15

    12

    6357

    0.12

    5.00

    5761

    0.41

    3.02

    55.356

    3.196

    B2832M-S03

    8-26

    24

    13111

    0.10

    5.00

    12559

    0.40

    6.57

    118.784

    7.02



    Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 10000-30000hrs

    特征:双转向,信号功能,锁定保护,无级调速,低噪音,低电磁干扰,超长寿命10000-30000小时



    Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

    注意:上述规格仅针对特定客户,电压、扭矩、转速、电流、功率、输出轴的特征和尺寸等都可以按照客户的特殊要求进行调整。

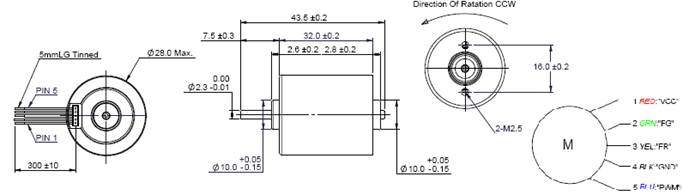

    Outline Drawing 外形图 :



    Usable machine screw length 3.0mm max. from motor mounting surface

    Unit: Millimeter

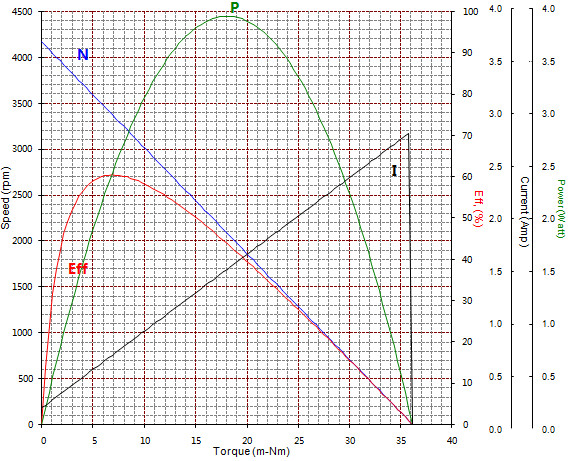

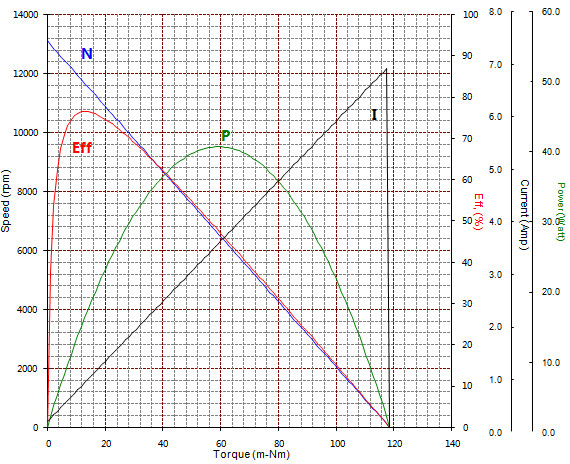

    Performance Curve 性能曲线:

     B2832M-S01               6V        B2832M-S03             24V
