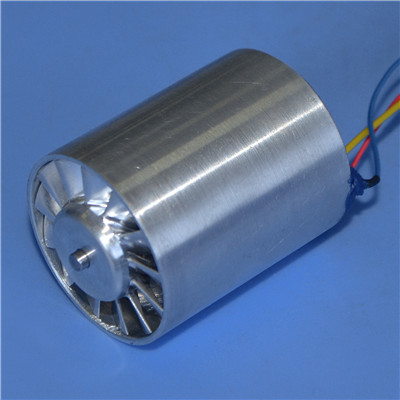

B2738F 超高速无刷直流电机

  • 所属分类:[全部恒驱直流无刷电机]
  • 产品简介:特征:双转向,信号功能,锁定保护,无级调速,低噪音,低电磁干扰,寿命1200小时
  • 订购热线:400-0755-631
  • 下载资料:资料下载

    B2738F

    Output Power 输出功率: 10W~130W

    Weight 重量: 75g (Approx.)

    Ultra High Speed Brushless DC Motor--Typical Application

    超高速无刷直流电机-典型应用

    Specialized for Hair Dryer & Vacuum Cleaner

    超高速无刷直流电机-专用于超高速电吹风和吸尘器



    Model

    型号

    Voltage(V) 电压

    No Load 空载

    Rated Load 额定负载

    Stall堵转

    Operating Range

    Rated

    Speed (rpm)

    Current (A)

    Torque (mNm)

    Speed (rpm)

    Current (A)

    Output P. (W)

    Torque (mNm)

    Current (A)

    B2738F-S01

    95-125

    DC110

    146430

    0.33

    7

    110000

    1.2

    90.5

    10.23

    3

    B2738F-S02

    190-240

    AC220

     147033

    0.12

    7

    110000

    0.66

    85.5

    11.53

    1.5

    Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, life span 1200hrs

    特征:双转向,信号功能,锁定保护,无级调速,低噪音,低电磁干扰,寿命1200小时

    Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

    注意:上述规格仅针对特定客户,电压、扭矩、转速、电流、功率、输出轴的特征和尺寸等都可以按照客户的特殊要求进行调整。

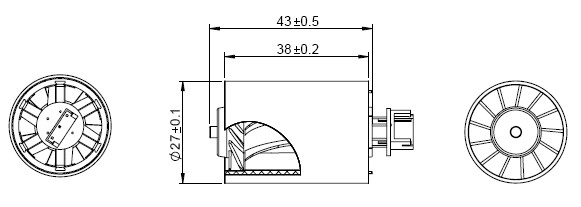

    Outline Drawing 外形图:

    Usable machine screw length 3.0mm max. from motor mounting surface

    Unit: Millimeter

    Performance Curve 性能曲线:

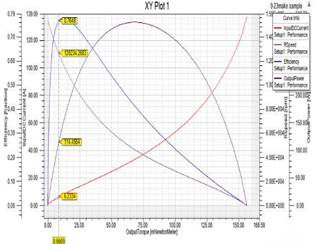

    B2738F-S01              DC110V

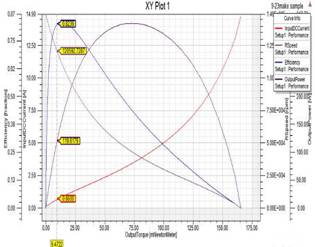

    B2738F-S02         AC220V
