B1632M 直流无刷电机

  • 所属分类:[全部恒驱直流无刷电机]
  • 产品简介:特征:双转向,信号功能,锁定保护,无极调速,低噪音,低电磁干扰,超长寿命3000-30000小时
  • 订购热线:400-0755-631
  • 下载资料:资料下载

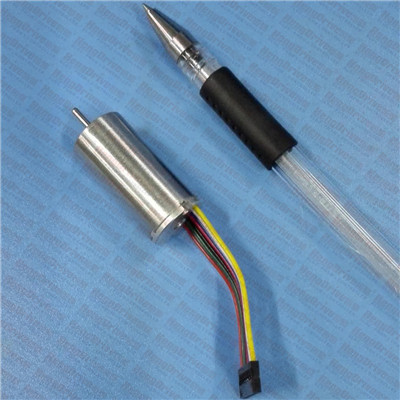

    B1632M

    Output Power 输出功率:3W~10W

    Weight重量: 27g (Approx.)

    Brushless DC Motor-Typical Application(In development) 无刷直流电机-典型应用(研发中

    With External Driving Controller 外置驱动器

    Automobile Parts: Micro Pump, Valve, Switcher

    汽车部件:微型泵,阀,切换器

    Medical Apparatus: Medical Pump, Liquid Pump, Gas Pump

    医疗器械:医疗泵,液泵,气泵

    Industry Equipment: Micro Pump, Micro Valve, Instrument, Meter

    电动工具:微型泵,微型阀门,仪器仪表

    Business Equipment: Scanner, Electric Curtain

    商业设备:扫描仪,电动窗帘



    Model

    型号

    Voltage(V) 电压

    No Load 空载

    Rated Load 额定负载

    Stall堵转

    Operating Range

    Rated

    Speed (rpm)

    Current (A)

    Torque (mNm)

    Speed (rpm)

    Current (A)

    Output P. (W)

    Torque (mNm)

    Current (A)

    B1632M-S01

    8-26

    24

    16362

    0.11

    6.87

    12191

    0.66

    8.7

    26

    3

    Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 3000-30000hrs

    特征:双转向,信号功能,锁定保护,无极调速,低噪音,低电磁干扰,超长寿命3000-30000小时

    Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

    注意:上述规格仅针对特定客户,电压、扭矩、转速、电流、功率、输出轴的特征和尺寸等都可以按照客户的特殊要求进行调整。

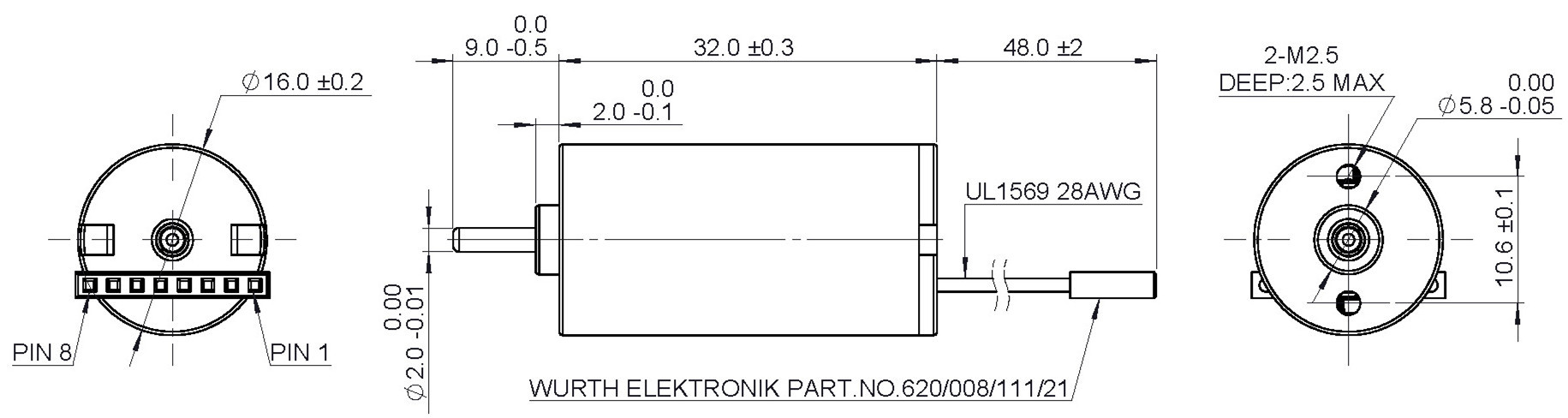

    Outline Drawing 外形图:



    Usable machine screw length 1.5mm max. from motor mounting surface

    Unit: Millimeter

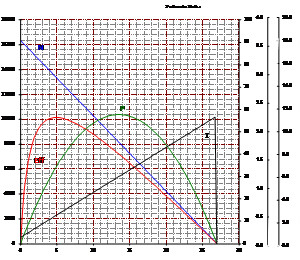

    Performance Curve 性能曲线:

    B1632M-S01      24V
