B1625M 直流无刷电机

  • 所属分类:[全部恒驱直流无刷电机]
  • 产品简介:双转向信号功能,锁定保护,低惯量,,低噪音,低电磁干扰,超长寿命3000-30000小时以上
  • 订购热线:400-0755-631
  • 下载资料:资料下载

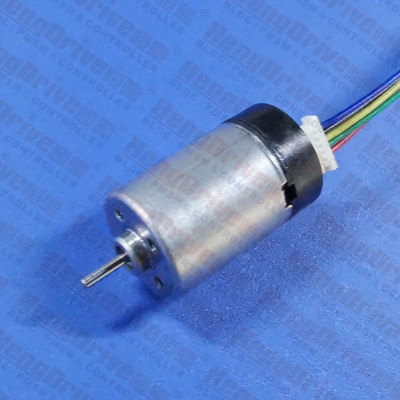

    B1625M

    Output Power 输出功率: 0.1W~4.0W

    Weight重量: 23g (Approx.)

    Brushless DC Motor-Typical Application 直流无刷电机-典型应用

    Home Application: White Goods, Small Appliance, Kitchen Appliance, Smart Home, Micro Actuate家用电器:白色家电,小家电,厨房电器,智能家居,微型致动器

    Automobile Parts: Micro Pump, Switcher  汽车部件:微型泵,切换器

    Medical Apparatus: Medical Pump, Liquid Pump, Gas Pump   医疗器械:医疗泵,液泵、气泵

    Industry Equipment: Micro Pump, Micro Valve, Instrument, Meter   电动工具:微型泵,微型阀门,仪器仪表

    Business Equipment: Printer, Copier, Projector, Scanner, Cash Register 商业设备:打印机,复印机,投影机,扫描仪,点钞机

    Personal Care: Skin Care, Beauty Apparatus   个人护理:皮肤护理、美容器材



    Model

    型号

    电压 Voltage(V)

    No Load 空载

    Rated Load 额定负载

    Stall 堵转

    Operating Range

    Rated

    Speed (rpm)

    Current (A)

    Torque (mNm)

    Speed (rpm)

    Current (A)

    Output P. (W)

    Torque (mNm)

    Current (A)

    B1625M-S01

    2-5

    3.7

    7500

    0.145

    0.687

    5569

    0.297

    0.40

    2.44

    0.35

    B1625M-S02

    5-13

    6

    7800

    0.050

    0.687

    6500

    0.150

    0.46

    4.17

    0.9

    B1625M-S03

    5-13

    12

    7850

    0.034

    0.687

    6570

    0.080

    0.475

    4.26

    0.8

    B1625M-S04

    5-13

    12

    49265

    0.314

    0.687

    47462

    0.538

    3.413

    18.76

    0.8

    B1625M-S05

    5-13

    6

    9995

    0.082

    1.001

    8045

    0.261

    0.843

    5.087

    0.9

    B1625M-S06

    5-13

    12

    26600

    0.118

    1.501

    22565

    0.415

    3.547

    9.895

    0.8

    Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 3000-30000hrs   特征:双转向,信号功能,锁定保护,无极调速,低噪音,低电磁干扰,超长寿命3000-30000小时

    Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

    注意:上述规格仅针对特定客户,电压、扭矩、转速、电流、功率、输出轴的特征和尺寸等都可以按照客户的特殊要求进行调整。

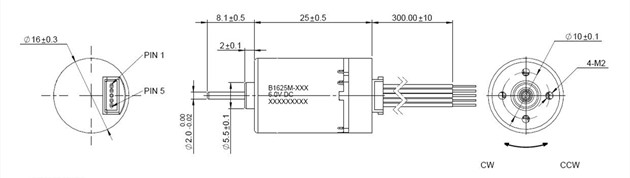

    Outline Drawing 外形图:



    Usable machine screw length 1.5mm max. from motor mounting surface

    Unit: Millimeter

    Performance Curve 性能曲线:

    B1625M-S02                  6V

     B1625M-S04               12V
